In this blog post, I set up a complete observability stack for the k3s cluster. Observability is crucial for understanding what's happening inside the cluster—whether its tracking resource usage, debugging issues, or analysing application behaviour. The stack consists of five main components, all deployed into the monitoring namespace:


Together, these form the "PLG" stack (Prometheus, Loki, Grafana) extended with Tempo for distributed tracing, which is a popular open-source alternative to commercial observability platforms.

All manifests for the f3s stack live in my configuration repository:

codeberg.org/snonux/conf/f3s

Important Note: GitOps Migration



**Note:** After publishing this blog post, the f3s cluster was migrated from imperative Helm deployments to declarative GitOps using ArgoCD. The Kubernetes manifests, Helm charts, and Justfiles in the repository have been reorganized for ArgoCD-based continuous deployment.

**To view the exact configuration as it existed when this blog post was written** (before the ArgoCD migration), check out the pre-ArgoCD revision:

$ git clone https://codeberg.org/snonux/conf.git
$ cd conf
$ git checkout 15a86f3  # Last commit before ArgoCD migration
$ cd f3s/prometheus/

**Current master branch** contains the ArgoCD-managed versions with:

The deployment concepts and architecture remain the same—only the deployment method changed from imperative (helm install/upgrade) to declarative (GitOps with ArgoCD).

Persistent storage recap



All observability components need persistent storage so that metrics and logs survive pod restarts. As covered in Part 6 of this series, the cluster uses NFS-backed persistent volumes:

f3s: Kubernetes with FreeBSD - Part 6: Storage

The FreeBSD hosts (f0, f1) serve as master-standby NFS servers, exporting ZFS datasets that are replicated across hosts using zrepl. The Rocky Linux k3s nodes (r0, r1, r2) mount these exports at /data/nfs/k3svolumes. This directory contains subdirectories for each application that needs persistent storage—including Prometheus, Grafana, and Loki.

For example, the observability stack uses these paths on the NFS share:


Each path gets a corresponding PersistentVolume and PersistentVolumeClaim in Kubernetes, allowing pods to mount them as regular volumes. Because the underlying storage is ZFS with replication, we get snapshots and redundancy for free.

The monitoring namespace



First, I created the monitoring namespace where all observability components will live:

$ kubectl create namespace monitoring
namespace/monitoring created

Installing Prometheus and Grafana



Prometheus and Grafana are deployed together using the kube-prometheus-stack Helm chart from the Prometheus community. This chart bundles Prometheus, Grafana, Alertmanager, and various exporters (Node Exporter, Kube State Metrics) into a single deployment. Ill explain what each component does in detail later when we look at the running pods.

Prerequisites



Add the Prometheus Helm chart repository:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

Create the directories on the NFS server for persistent storage:

[root@r0 ~]# mkdir -p /data/nfs/k3svolumes/prometheus/data
[root@r0 ~]# mkdir -p /data/nfs/k3svolumes/grafana/data

Deploying with the Justfile



The configuration repository contains a Justfile that automates the deployment. just is a handy command runner—think of it as a simpler, more modern alternative to make. I use it throughout the f3s repository to wrap repetitive Helm and kubectl commands:

just - A handy way to save and run project-specific commands
codeberg.org/snonux/conf/f3s/prometheus

To install everything:

$ cd conf/f3s/prometheus
$ just install
kubectl apply -f persistent-volumes.yaml
persistentvolume/prometheus-data-pv created
persistentvolume/grafana-data-pv created
persistentvolumeclaim/grafana-data-pvc created
helm install prometheus prometheus-community/kube-prometheus-stack \
    --namespace monitoring -f persistence-values.yaml
NAME: prometheus
LAST DEPLOYED: ...
NAMESPACE: monitoring
STATUS: deployed

The persistence-values.yaml configures Prometheus and Grafana to use the NFS-backed persistent volumes I mentioned earlier, ensuring data survives pod restarts. It also enables scraping of etcd and kube-controller-manager metrics:

kubeEtcd:
  enabled: true
  endpoints:
    - 192.168.2.120
    - 192.168.2.121
    - 192.168.2.122
  service:
    enabled: true
    port: 2381
    targetPort: 2381

kubeControllerManager:
  enabled: true
  endpoints:
    - 192.168.2.120
    - 192.168.2.121
    - 192.168.2.122
  service:
    enabled: true
    port: 10257
    targetPort: 10257
  serviceMonitor:
    enabled: true
    https: true
    insecureSkipVerify: true

By default, k3s binds the controller-manager to localhost only and doesn't expose etcd metrics, so the "Kubernetes / Controller Manager" and "etcd" dashboards in Grafana will show no data. To fix both, add the following to /etc/rancher/k3s/config.yaml on each k3s server node:

[root@r0 ~]# cat >> /etc/rancher/k3s/config.yaml << 'EOF'
kube-controller-manager-arg:
  - bind-address=0.0.0.0
etcd-expose-metrics: true
EOF
[root@r0 ~]# systemctl restart k3s

Repeat for r1 and r2. After restarting all nodes, the controller-manager metrics endpoint will be accessible and etcd metrics are available on port 2381. Prometheus can now scrape both.

Verify etcd metrics are exposed:

[root@r0 ~]# curl -s http://127.0.0.1:2381/metrics | grep etcd_server_has_leader
etcd_server_has_leader 1

The full persistence-values.yaml and all other Prometheus configuration files are available on Codeberg:

codeberg.org/snonux/conf/f3s/prometheus

The persistent volume definitions bind to specific paths on the NFS share using hostPath volumes—the same pattern used for other services in Part 7:

f3s: Kubernetes with FreeBSD - Part 7: k3s and first pod deployments

Exposing Grafana via ingress



The chart also deploys an ingress for Grafana, making it accessible at grafana.f3s.foo.zone. The ingress configuration follows the same pattern as other services in the cluster—Traefik handles the routing internally, while the OpenBSD edge relays terminate TLS and forward traffic through WireGuard.

Once deployed, Grafana is accessible and comes pre-configured with Prometheus as a data source. You can verify the Prometheus service is running:

$ kubectl get svc -n monitoring prometheus-kube-prometheus-prometheus
NAME                                    TYPE        CLUSTER-IP      PORT(S)
prometheus-kube-prometheus-prometheus   ClusterIP   10.43.152.163   9090/TCP,8080/TCP

Grafana connects to Prometheus using the internal service URL http://prometheus-kube-prometheus-prometheus.monitoring.svc.cluster.local:9090. The default Grafana credentials are admin/prom-operator, which should be changed immediately after first login.

Grafana dashboard showing Prometheus metrics

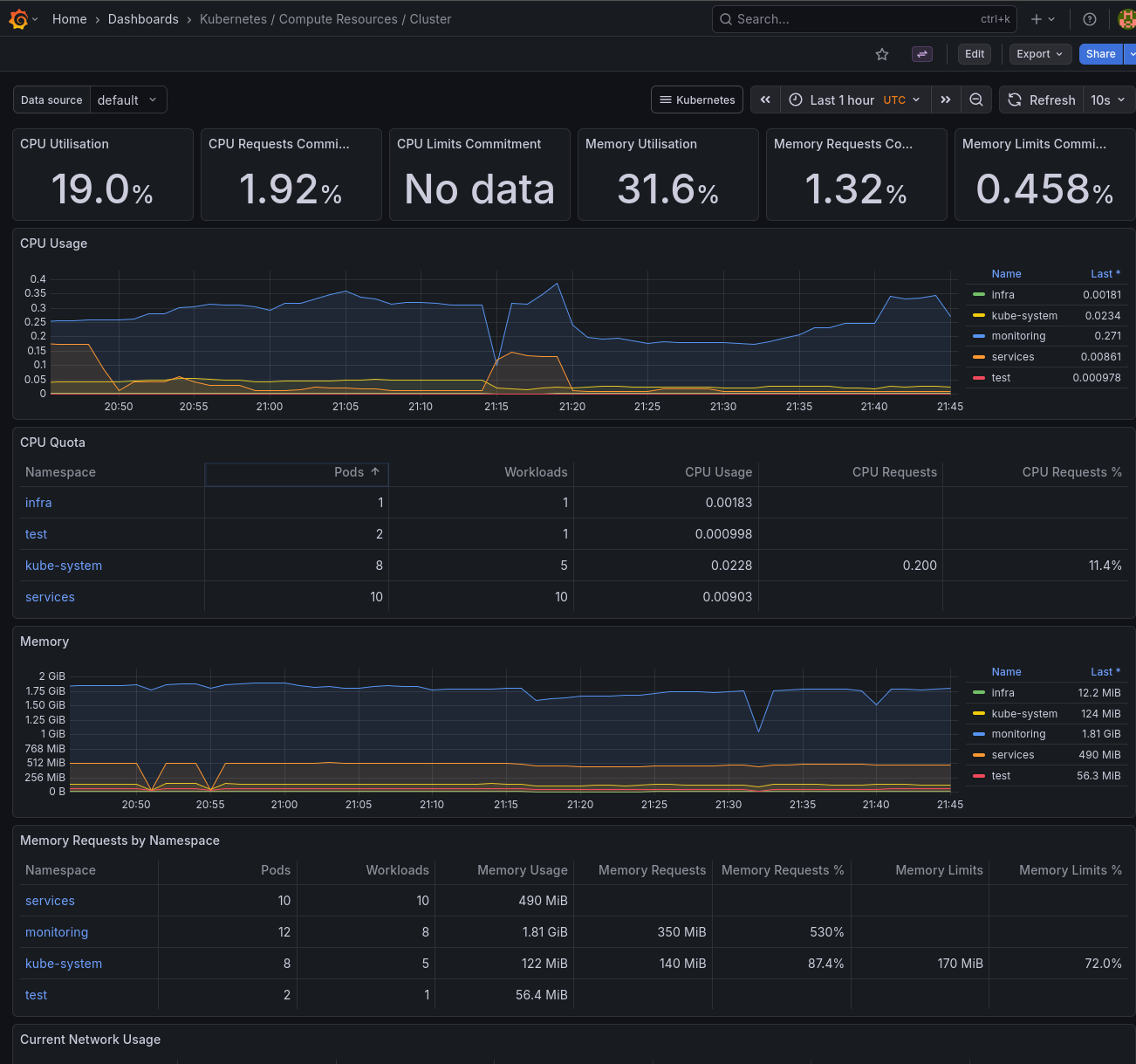

Grafana dashboard showing cluster metrics

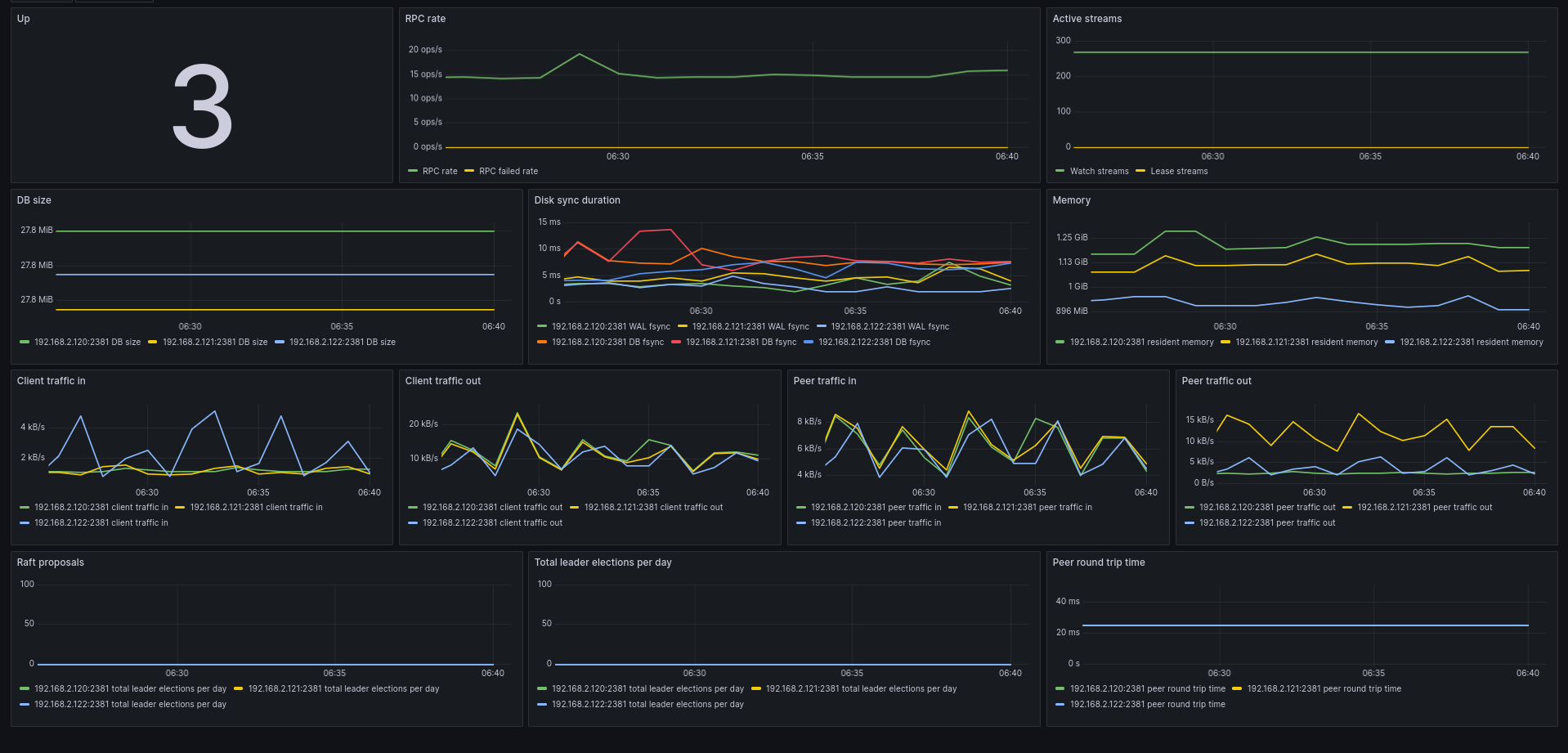

Grafana etcd dashboard showing cluster health, RPC rate, disk sync duration, and peer round trip times

Installing Loki and Alloy



While Prometheus handles metrics, Loki handles logs. It's designed to be cost-effective and easy to operate—it doesn't index the contents of logs, only the metadata (labels), making it very efficient for storage.

Alloy is Grafana's telemetry collector (the successor to Promtail). It runs as a DaemonSet on each node, tails container logs, and ships them to Loki.

Prerequisites



Create the data directory on the NFS server:

[root@r0 ~]# mkdir -p /data/nfs/k3svolumes/loki/data

Deploying Loki and Alloy



The Loki configuration also lives in the repository:

codeberg.org/snonux/conf/f3s/loki

To install:

$ cd conf/f3s/loki
$ just install
helm repo add grafana https://grafana.github.io/helm-charts || true
helm repo update
kubectl apply -f persistent-volumes.yaml
persistentvolume/loki-data-pv created
persistentvolumeclaim/loki-data-pvc created
helm install loki grafana/loki --namespace monitoring -f values.yaml
NAME: loki
LAST DEPLOYED: ...
NAMESPACE: monitoring
STATUS: deployed
...
helm install alloy grafana/alloy --namespace monitoring -f alloy-values.yaml
NAME: alloy
LAST DEPLOYED: ...
NAMESPACE: monitoring
STATUS: deployed

Loki runs in single-binary mode with a single replica (loki-0), which is appropriate for a home lab cluster. This means there's only one Loki pod running at any time. If the node hosting Loki fails, Kubernetes will automatically reschedule the pod to another worker node—but there will be a brief downtime (typically under a minute) while this happens. For my home lab use case, this is perfectly acceptable.

For full high-availability, you'd deploy Loki in microservices mode with separate read, write, and backend components, backed by object storage like S3 or MinIO instead of local filesystem storage. That's a more complex setup that I might explore in a future blog post—but for now, the single-binary mode with NFS-backed persistence strikes the right balance between simplicity and durability.

Configuring Alloy



Alloy is configured via alloy-values.yaml to discover all pods in the cluster and forward their logs to Loki:

discovery.kubernetes "pods" {
  role = "pod"
}

discovery.relabel "pods" {
  targets = discovery.kubernetes.pods.targets

  rule {
    source_labels = ["__meta_kubernetes_namespace"]
    target_label  = "namespace"
  }

  rule {
    source_labels = ["__meta_kubernetes_pod_name"]
    target_label  = "pod"
  }

  rule {
    source_labels = ["__meta_kubernetes_pod_container_name"]
    target_label  = "container"
  }

  rule {
    source_labels = ["__meta_kubernetes_pod_label_app"]
    target_label  = "app"
  }
}

loki.source.kubernetes "pods" {
  targets    = discovery.relabel.pods.output
  forward_to = [loki.write.default.receiver]
}

loki.write "default" {
  endpoint {
    url = "http://loki.monitoring.svc.cluster.local:3100/loki/api/v1/push"
  }
}

This configuration automatically labels each log line with the namespace, pod name, container name, and app label, making it easy to filter logs in Grafana.

Adding Loki as a Grafana data source



Loki doesn't have its own web UI—you query it through Grafana. First, verify the Loki service is running:

$ kubectl get svc -n monitoring loki
NAME   TYPE        CLUSTER-IP    PORT(S)
loki   ClusterIP   10.43.64.60   3100/TCP,9095/TCP

To add Loki as a data source in Grafana:


Once configured, you can explore logs in Grafana's "Explore" view. I'll show some example queries in the "Using the observability stack" section below.

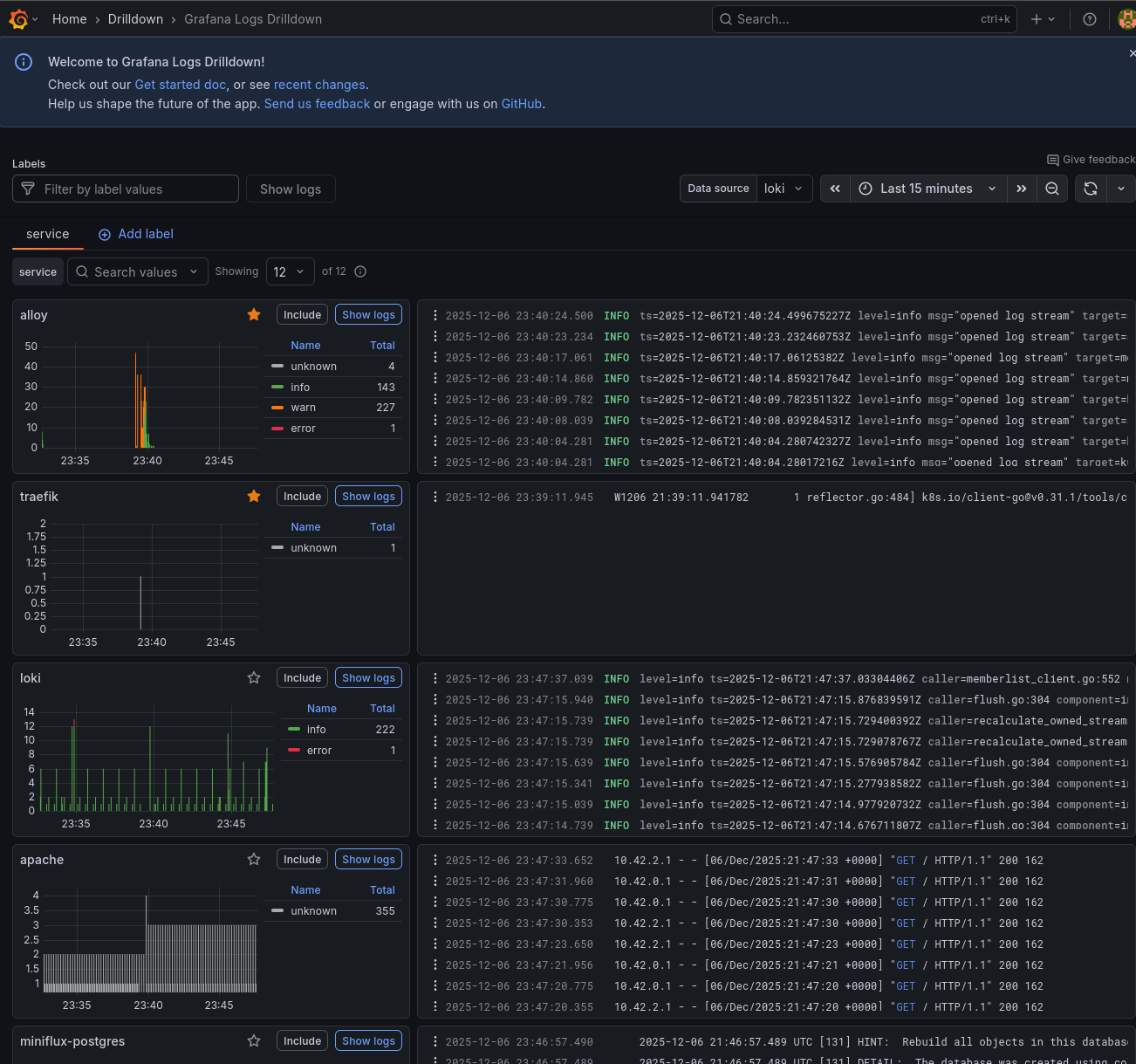

Exploring logs in Grafana with Loki

The complete monitoring stack



After deploying everything, here's what's running in the monitoring namespace:

$ kubectl get pods -n monitoring
NAME                                                     READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0   2/2     Running   0          42d
alloy-g5fgj                                              2/2     Running   0          29m
alloy-nfw8w                                              2/2     Running   0          29m
alloy-tg9vj                                              2/2     Running   0          29m
loki-0                                                   2/2     Running   0          25m
prometheus-grafana-868f9dc7cf-lg2vl                      3/3     Running   0          42d
prometheus-kube-prometheus-operator-8d7bbc48c-p4sf4      1/1     Running   0          42d
prometheus-kube-state-metrics-7c5fb9d798-hh2fx           1/1     Running   0          42d
prometheus-prometheus-kube-prometheus-prometheus-0       2/2     Running   0          42d
prometheus-prometheus-node-exporter-2nsg9                1/1     Running   0          42d
prometheus-prometheus-node-exporter-mqr25                1/1     Running   0          42d
prometheus-prometheus-node-exporter-wp4ds                1/1     Running   0          42d
tempo-0                                                  1/1     Running   0          1d

Note: Tempo (tempo-0) is deployed later in this post in the "Distributed Tracing with Grafana Tempo" section. It is included in the pod listing here for completeness.

And the services:

$ kubectl get svc -n monitoring
NAME                                      TYPE        CLUSTER-IP      PORT(S)
alertmanager-operated                     ClusterIP   None            9093/TCP,9094/TCP
alloy                                     ClusterIP   10.43.74.14     12345/TCP
loki                                      ClusterIP   10.43.64.60     3100/TCP,9095/TCP
loki-headless                             ClusterIP   None            3100/TCP
prometheus-grafana                        ClusterIP   10.43.46.82     80/TCP
prometheus-kube-prometheus-alertmanager   ClusterIP   10.43.208.43    9093/TCP,8080/TCP
prometheus-kube-prometheus-operator       ClusterIP   10.43.246.121   443/TCP
prometheus-kube-prometheus-prometheus     ClusterIP   10.43.152.163   9090/TCP,8080/TCP
prometheus-kube-state-metrics             ClusterIP   10.43.64.26     8080/TCP
prometheus-prometheus-node-exporter       ClusterIP   10.43.127.242   9100/TCP
tempo                                     ClusterIP   10.43.91.44     3200/TCP,4317/TCP,4318/TCP

Let me break down what each pod does:










Using the observability stack



Viewing metrics in Grafana



The kube-prometheus-stack comes with many pre-built dashboards. Some useful ones include:


Querying logs with LogQL



In Grafana's Explore view, select Loki as the data source and try queries like:

# All logs from the services namespace
{namespace="services"}

# Logs from pods matching a pattern
{pod=~"miniflux.*"}

# Filter by log content
{namespace="services"} |= "error"

# Parse JSON logs and filter
{namespace="services"} | json | level="error"

Creating alerts



Prometheus supports alerting rules that can notify you when something goes wrong. The kube-prometheus-stack includes many default alerts for common issues like high CPU usage, pod crashes, and node problems. These can be customised via PrometheusRule CRDs.

Monitoring external FreeBSD hosts



The observability stack can also monitor servers outside the Kubernetes cluster. The FreeBSD hosts (f0, f1, f2) that serve NFS storage can be added to Prometheus using the Node Exporter.

Installing Node Exporter on FreeBSD



On each FreeBSD host, install the node_exporter package:

paul@f0:~ % doas pkg install -y node_exporter

Enable the service to start at boot:

paul@f0:~ % doas sysrc node_exporter_enable=YES
node_exporter_enable:  -> YES

Configure node_exporter to listen on the WireGuard interface. This ensures metrics are only accessible through the secure tunnel, not the public network. Replace the IP with the host's WireGuard address:

paul@f0:~ % doas sysrc node_exporter_args='--web.listen-address=192.168.2.130:9100'
node_exporter_args:  -> --web.listen-address=192.168.2.130:9100

Start the service:

paul@f0:~ % doas service node_exporter start
Starting node_exporter.

Verify it's running:

paul@f0:~ % curl -s http://192.168.2.130:9100/metrics | head -3
# HELP go_gc_duration_seconds A summary of the wall-time pause...
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 0

Repeat for the other FreeBSD hosts (f1, f2) with their respective WireGuard IPs.

Adding FreeBSD hosts to Prometheus



Create a file additional-scrape-configs.yaml in the prometheus configuration directory:

- job_name: 'node-exporter'
  static_configs:
    - targets:
      - '192.168.2.130:9100'  # f0 via WireGuard
      - '192.168.2.131:9100'  # f1 via WireGuard
      - '192.168.2.132:9100'  # f2 via WireGuard
      labels:
        os: freebsd

The job_name must be node-exporter to match the existing dashboards. The os: freebsd label allows filtering these hosts separately if needed.

Create a Kubernetes secret from this file:

$ kubectl create secret generic additional-scrape-configs \
    --from-file=additional-scrape-configs.yaml \
    -n monitoring

Update persistence-values.yaml to reference the secret:

prometheus:
  prometheusSpec:
    additionalScrapeConfigsSecret:
      enabled: true
      name: additional-scrape-configs
      key: additional-scrape-configs.yaml

Upgrade the Prometheus deployment:

$ just upgrade

After a minute or so, the FreeBSD hosts appear in the Prometheus targets and in the Node Exporter dashboards in Grafana.

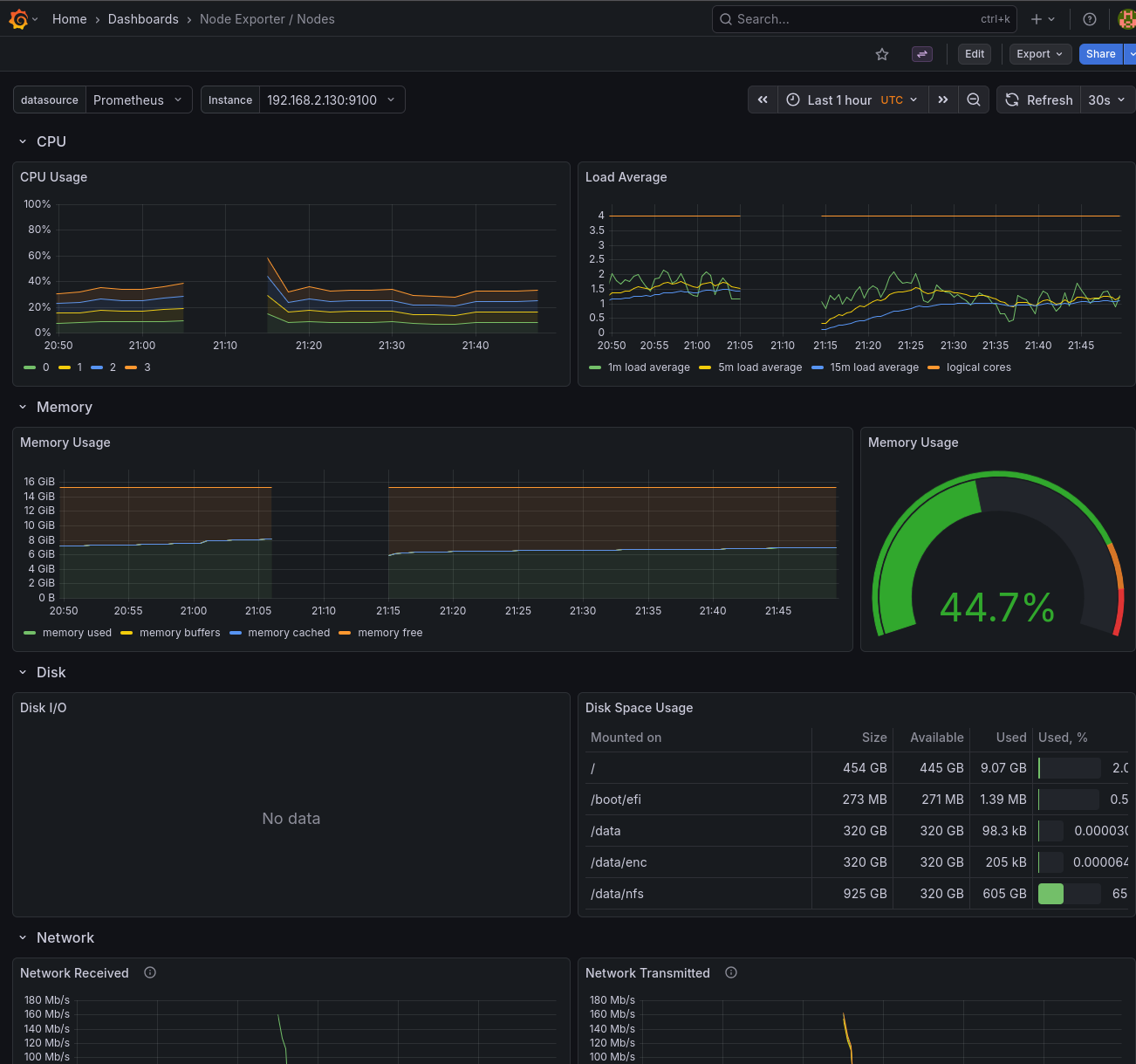

FreeBSD hosts in the Node Exporter dashboard

FreeBSD memory metrics compatibility



The default Node Exporter dashboards are designed for Linux and expect metrics like node_memory_MemAvailable_bytes. FreeBSD uses different metric names (node_memory_size_bytes, node_memory_free_bytes, etc.), so memory panels will show "No data" out of the box.

To fix this, I created a PrometheusRule that generates synthetic Linux-compatible metrics from the FreeBSD equivalents:

apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: freebsd-memory-rules
  namespace: monitoring
  labels:
    release: prometheus
spec:
  groups:
    - name: freebsd-memory
      rules:
        - record: node_memory_MemTotal_bytes
          expr: node_memory_size_bytes{os="freebsd"}
        - record: node_memory_MemAvailable_bytes
          expr: |
            node_memory_free_bytes{os="freebsd"}
              + node_memory_inactive_bytes{os="freebsd"}
              + node_memory_cache_bytes{os="freebsd"}
        - record: node_memory_MemFree_bytes
          expr: node_memory_free_bytes{os="freebsd"}
        - record: node_memory_Buffers_bytes
          expr: node_memory_buffer_bytes{os="freebsd"}
        - record: node_memory_Cached_bytes
          expr: node_memory_cache_bytes{os="freebsd"}

This file is saved as freebsd-recording-rules.yaml and applied as part of the Prometheus installation. The os="freebsd" label (set in the scrape config) ensures these rules only apply to FreeBSD hosts. After applying, the memory panels in the Node Exporter dashboards populate correctly for FreeBSD.

freebsd-recording-rules.yaml on Codeberg

Disk I/O metrics limitation



Unlike memory metrics, disk I/O metrics (node_disk_read_bytes_total, node_disk_written_bytes_total, etc.) are not available on FreeBSD. The Linux diskstats collector that provides these metrics doesn't have a FreeBSD equivalent in the node_exporter.

The disk I/O panels in the Node Exporter dashboards will show "No data" for FreeBSD hosts. FreeBSD does expose ZFS-specific metrics (node_zfs_arcstats_*) for ARC cache performance, and per-dataset I/O stats are available via sysctl kstat.zfs, but mapping these to the Linux-style metrics the dashboards expect is non-trivial. To address this, I created custom ZFS-specific dashboards, covered in the next section.

ZFS Monitoring for FreeBSD Servers



The FreeBSD servers (f0, f1, f2) that provide NFS storage to the k3s cluster have ZFS filesystems. Monitoring ZFS performance is crucial for understanding storage performance and cache efficiency.

Node Exporter ZFS Collector



The node_exporter running on each FreeBSD server (v1.9.1) includes a built-in ZFS collector that exposes metrics via sysctls. The ZFS collector is enabled by default and provides:


Verifying ZFS Metrics



On any FreeBSD server, check that ZFS metrics are being exposed:

paul@f0:~ % curl -s http://localhost:9100/metrics | grep node_zfs_arcstats | wc -l
      69

The metrics are automatically scraped by Prometheus through the existing static configuration in additional-scrape-configs.yaml which targets all FreeBSD servers on port 9100 with the os: freebsd label.

ZFS Recording Rules



Created recording rules for easier dashboard consumption in zfs-recording-rules.yaml:

apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: freebsd-zfs-rules
  namespace: monitoring
  labels:
    release: prometheus
spec:
  groups:
    - name: freebsd-zfs-arc
      interval: 30s
      rules:
        - record: node_zfs_arc_hit_rate_percent
          expr: |
            100 * (
              rate(node_zfs_arcstats_hits_total{os="freebsd"}[5m]) /
              (rate(node_zfs_arcstats_hits_total{os="freebsd"}[5m]) +
               rate(node_zfs_arcstats_misses_total{os="freebsd"}[5m]))
            )
          labels:
            os: freebsd
        - record: node_zfs_arc_memory_usage_percent
          expr: |
            100 * (
              node_zfs_arcstats_size_bytes{os="freebsd"} /
              node_zfs_arcstats_c_max_bytes{os="freebsd"}
            )
          labels:
            os: freebsd
        # Additional rules for metadata %, target %, MRU/MFU %, etc.

These recording rules calculate:


Grafana Dashboards



Created two comprehensive ZFS monitoring dashboards (zfs-dashboards.yaml):

**Dashboard 1: FreeBSD ZFS (per-host detailed view)**

Includes variables to select:


Pool Overview Row:


Dataset Statistics Row:


ARC Cache Statistics Row:


**Dashboard 2: FreeBSD ZFS Summary (cluster-wide overview)**

Cluster-Wide Pool Statistics Row:


Per-Host Pool Breakdown Row:


Cluster-Wide ARC Statistics Row:


Dashboard Visualization:

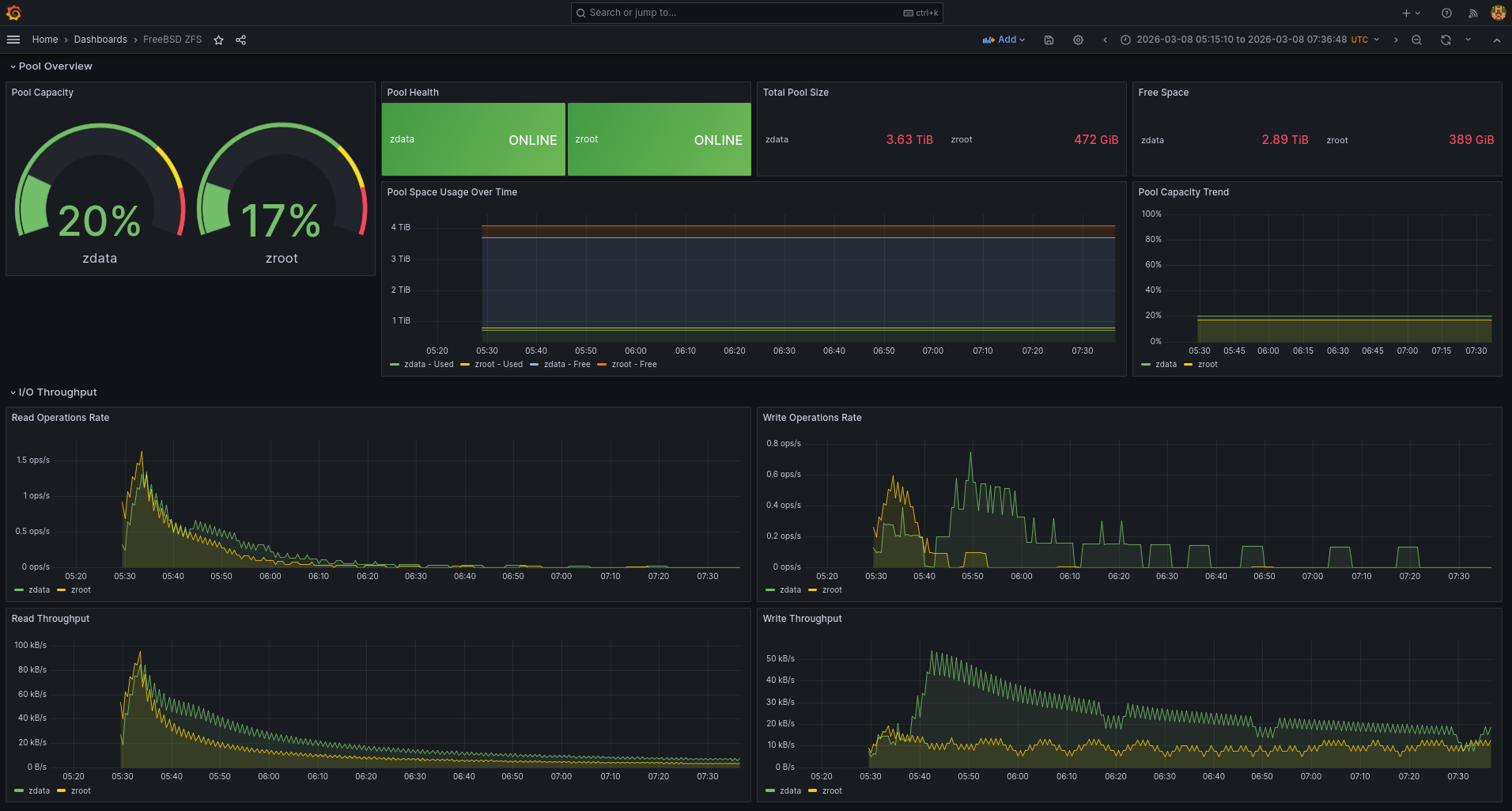

ZFS monitoring dashboard in Grafana showing pool capacity, health, and I/O throughput

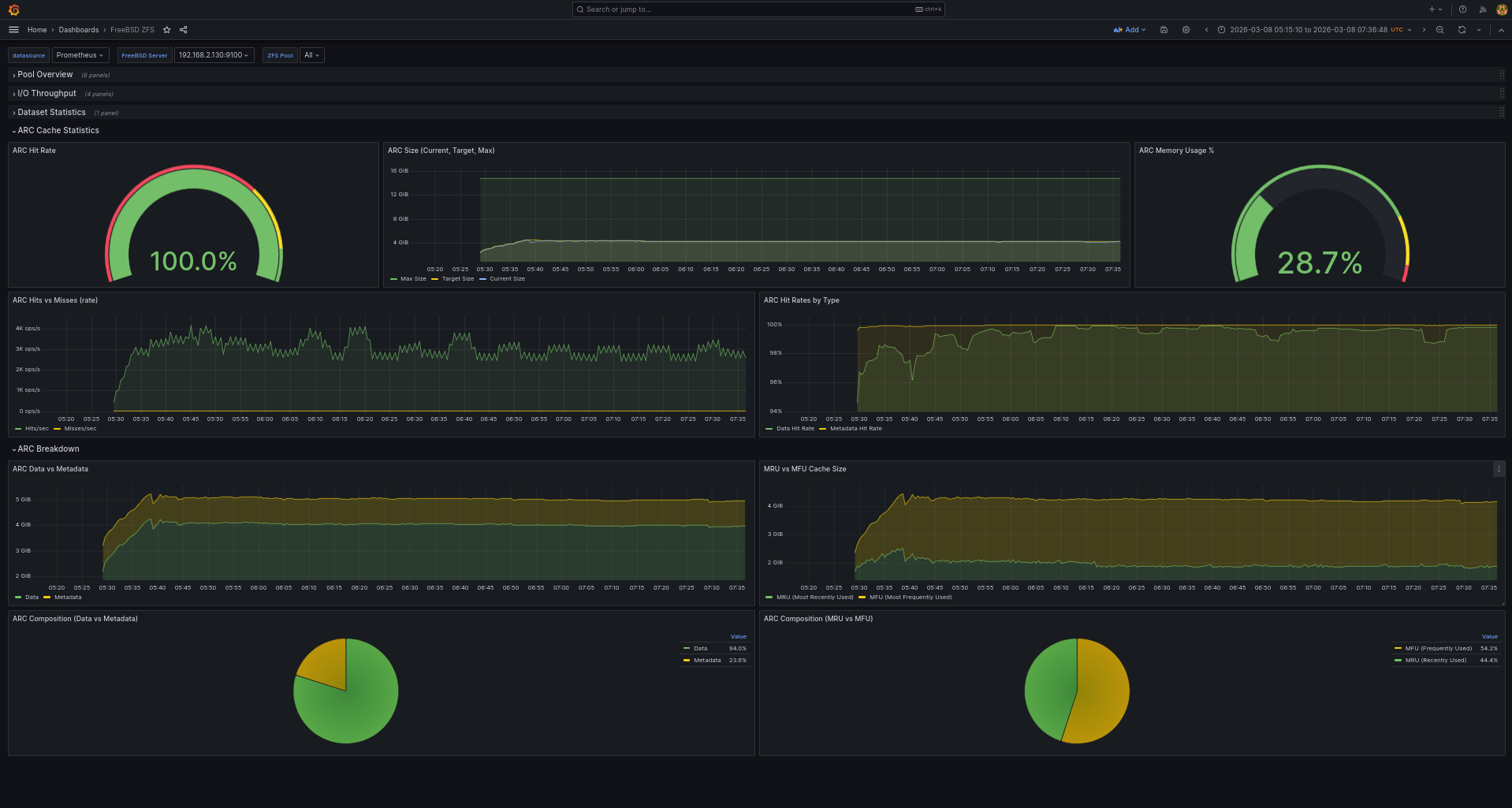

ZFS ARC cache statistics showing hit rate, memory usage, and size trends

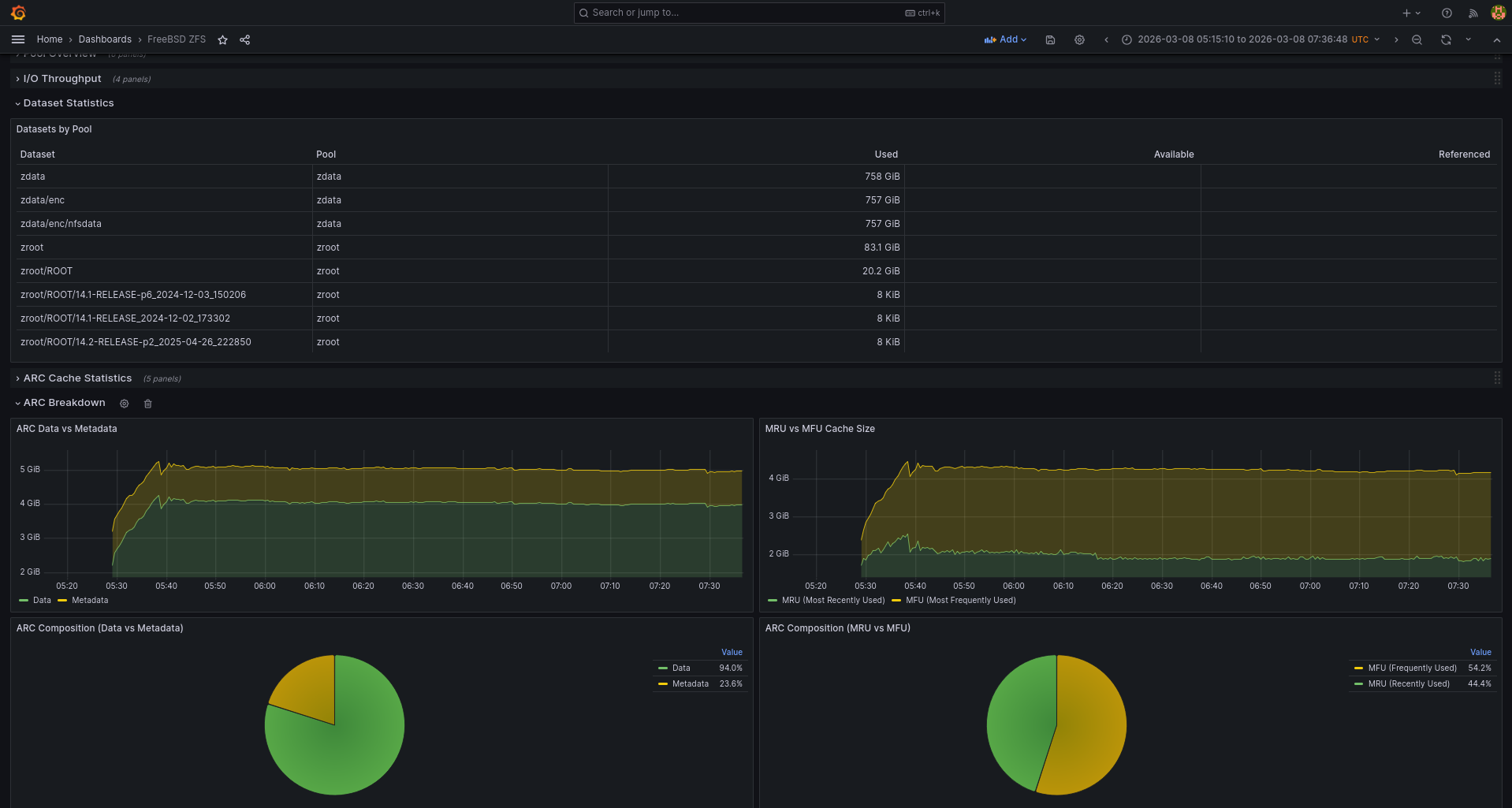

ZFS datasets table and ARC data vs metadata breakdown

Deployment



Applied the resources to the cluster:

cd /home/paul/git/conf/f3s/prometheus
kubectl apply -f zfs-recording-rules.yaml
kubectl apply -f zfs-dashboards.yaml

Updated Justfile to include ZFS recording rules in install and upgrade targets:

install:
    kubectl apply -f persistent-volumes.yaml
    kubectl create secret generic additional-scrape-configs --from-file=additional-scrape-configs.yaml -n monitoring --dry-run=client -o yaml | kubectl apply -f -
    helm install prometheus prometheus-community/kube-prometheus-stack --namespace monitoring -f persistence-values.yaml
    kubectl apply -f freebsd-recording-rules.yaml
    kubectl apply -f openbsd-recording-rules.yaml
    kubectl apply -f zfs-recording-rules.yaml
    just -f grafana-ingress/Justfile install

Verifying ZFS Metrics in Prometheus



Check that ZFS metrics are being collected:

kubectl exec -n monitoring prometheus-prometheus-kube-prometheus-prometheus-0 -c prometheus -- \
  wget -qO- 'http://localhost:9090/api/v1/query?query=node_zfs_arcstats_size_bytes'

Check recording rules are calculating correctly:

kubectl exec -n monitoring prometheus-prometheus-kube-prometheus-prometheus-0 -c prometheus -- \
  wget -qO- 'http://localhost:9090/api/v1/query?query=node_zfs_arc_memory_usage_percent'

Example output shows memory usage percentage for each FreeBSD server:

"result":[
  {"metric":{"instance":"192.168.2.130:9100","os":"freebsd"},"value":[...,"37.58"]},
  {"metric":{"instance":"192.168.2.131:9100","os":"freebsd"},"value":[...,"12.85"]},
  {"metric":{"instance":"192.168.2.132:9100","os":"freebsd"},"value":[...,"13.44"]}
]

Key Metrics to Monitor




ZFS Pool and Dataset Metrics via Textfile Collector



To complement the ARC statistics from node_exporter's built-in ZFS collector, I added pool capacity and dataset metrics using the textfile collector feature.

Created a script at /usr/local/bin/zfs_pool_metrics.sh on each FreeBSD server:

#!/bin/sh
# ZFS Pool and Dataset Metrics Collector for Prometheus

OUTPUT_FILE="/var/tmp/node_exporter/zfs_pools.prom.$$"
FINAL_FILE="/var/tmp/node_exporter/zfs_pools.prom"

mkdir -p /var/tmp/node_exporter

{
    # Pool metrics
    echo "# HELP zfs_pool_size_bytes Total size of ZFS pool"
    echo "# TYPE zfs_pool_size_bytes gauge"
    echo "# HELP zfs_pool_allocated_bytes Allocated space in ZFS pool"
    echo "# TYPE zfs_pool_allocated_bytes gauge"
    echo "# HELP zfs_pool_free_bytes Free space in ZFS pool"
    echo "# TYPE zfs_pool_free_bytes gauge"
    echo "# HELP zfs_pool_capacity_percent Capacity percentage"
    echo "# TYPE zfs_pool_capacity_percent gauge"
    echo "# HELP zfs_pool_health Pool health (0=ONLINE, 1=DEGRADED, 2=FAULTED)"
    echo "# TYPE zfs_pool_health gauge"

    zpool list -Hp -o name,size,allocated,free,capacity,health | \
    while IFS=$'\t' read name size alloc free cap health; do
        case "$health" in
            ONLINE)   health_val=0 ;;
            DEGRADED) health_val=1 ;;
            FAULTED)  health_val=2 ;;
            *)        health_val=6 ;;
        esac
        cap_num=$(echo "$cap" | sed 's/%//')

        echo "zfs_pool_size_bytes{pool=\"$name\"} $size"
        echo "zfs_pool_allocated_bytes{pool=\"$name\"} $alloc"
        echo "zfs_pool_free_bytes{pool=\"$name\"} $free"
        echo "zfs_pool_capacity_percent{pool=\"$name\"} $cap_num"
        echo "zfs_pool_health{pool=\"$name\"} $health_val"
    done

    # Dataset metrics
    echo "# HELP zfs_dataset_used_bytes Used space in dataset"
    echo "# TYPE zfs_dataset_used_bytes gauge"
    echo "# HELP zfs_dataset_available_bytes Available space"
    echo "# TYPE zfs_dataset_available_bytes gauge"
    echo "# HELP zfs_dataset_referenced_bytes Referenced space"
    echo "# TYPE zfs_dataset_referenced_bytes gauge"

    zfs list -Hp -t filesystem -o name,used,available,referenced | \
    while IFS=$'\t' read name used avail ref; do
        pool=$(echo "$name" | cut -d/ -f1)
        echo "zfs_dataset_used_bytes{pool=\"$pool\",dataset=\"$name\"} $used"
        echo "zfs_dataset_available_bytes{pool=\"$pool\",dataset=\"$name\"} $avail"
        echo "zfs_dataset_referenced_bytes{pool=\"$pool\",dataset=\"$name\"} $ref"
    done
} > "$OUTPUT_FILE"

mv "$OUTPUT_FILE" "$FINAL_FILE"

Deployed to all FreeBSD servers:

for host in f0 f1 f2; do
    scp /tmp/zfs_pool_metrics.sh paul@$host:/tmp/
    ssh paul@$host 'doas mv /tmp/zfs_pool_metrics.sh /usr/local/bin/ && \
                    doas chmod +x /usr/local/bin/zfs_pool_metrics.sh'
done

Set up cron jobs to run every minute:

for host in f0 f1 f2; do
    ssh paul@$host 'echo "* * * * * /usr/local/bin/zfs_pool_metrics.sh >/dev/null 2>&1" | \
                    doas crontab -'
done

The textfile collector (already configured with --collector.textfile.directory=/var/tmp/node_exporter) automatically picks up the metrics.

Verify metrics are being exposed:

paul@f0:~ % curl -s http://localhost:9100/metrics | grep "^zfs_pool" | head -5
zfs_pool_allocated_bytes{pool="zdata"} 6.47622733824e+11
zfs_pool_allocated_bytes{pool="zroot"} 5.3338578944e+10
zfs_pool_capacity_percent{pool="zdata"} 64
zfs_pool_capacity_percent{pool="zroot"} 10
zfs_pool_free_bytes{pool="zdata"} 3.48809678848e+11

All ZFS-related configuration files are available on Codeberg:

zfs-recording-rules.yaml on Codeberg
zfs-dashboards.yaml on Codeberg

Monitoring external OpenBSD hosts



The same approach works for OpenBSD hosts. I have two OpenBSD edge relay servers (blowfish, fishfinger) that handle TLS termination and forward traffic through WireGuard to the cluster. These can also be monitored with Node Exporter.

Installing Node Exporter on OpenBSD



On each OpenBSD host, install the node_exporter package:

blowfish:~ $ doas pkg_add node_exporter
quirks-7.103 signed on 2025-10-13T22:55:16Z
The following new rcscripts were installed: /etc/rc.d/node_exporter
See rcctl(8) for details.

Enable the service to start at boot:

blowfish:~ $ doas rcctl enable node_exporter

Configure node_exporter to listen on the WireGuard interface. This ensures metrics are only accessible through the secure tunnel, not the public network. Replace the IP with the host's WireGuard address:

blowfish:~ $ doas rcctl set node_exporter flags '--web.listen-address=192.168.2.110:9100'

Start the service:

blowfish:~ $ doas rcctl start node_exporter
node_exporter(ok)

Verify it's running:

blowfish:~ $ curl -s http://192.168.2.110:9100/metrics | head -3
# HELP go_gc_duration_seconds A summary of the wall-time pause...
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 0

Repeat for the other OpenBSD host (fishfinger) with its respective WireGuard IP (192.168.2.111).

Adding OpenBSD hosts to Prometheus



Update additional-scrape-configs.yaml to include the OpenBSD targets:

- job_name: 'node-exporter'
  static_configs:
    - targets:
      - '192.168.2.130:9100'  # f0 via WireGuard
      - '192.168.2.131:9100'  # f1 via WireGuard
      - '192.168.2.132:9100'  # f2 via WireGuard
      labels:
        os: freebsd
    - targets:
      - '192.168.2.110:9100'  # blowfish via WireGuard
      - '192.168.2.111:9100'  # fishfinger via WireGuard
      labels:
        os: openbsd

The os: openbsd label allows filtering these hosts separately from FreeBSD and Linux nodes.

OpenBSD memory metrics compatibility



OpenBSD uses the same memory metric names as FreeBSD (node_memory_size_bytes, node_memory_free_bytes, etc.), so a similar PrometheusRule is needed to generate Linux-compatible metrics:

apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: openbsd-memory-rules
  namespace: monitoring
  labels:
    release: prometheus
spec:
  groups:
    - name: openbsd-memory
      rules:
        - record: node_memory_MemTotal_bytes
          expr: node_memory_size_bytes{os="openbsd"}
          labels:
            os: openbsd
        - record: node_memory_MemAvailable_bytes
          expr: |
            node_memory_free_bytes{os="openbsd"}
              + node_memory_inactive_bytes{os="openbsd"}
              + node_memory_cache_bytes{os="openbsd"}
          labels:
            os: openbsd
        - record: node_memory_MemFree_bytes
          expr: node_memory_free_bytes{os="openbsd"}
          labels:
            os: openbsd
        - record: node_memory_Cached_bytes
          expr: node_memory_cache_bytes{os="openbsd"}
          labels:
            os: openbsd

This file is saved as openbsd-recording-rules.yaml and applied alongside the FreeBSD rules. Note that OpenBSD doesn't expose a buffer memory metric, so that rule is omitted.

openbsd-recording-rules.yaml on Codeberg

After running just upgrade, the OpenBSD hosts appear in Prometheus targets and the Node Exporter dashboards.

Distributed Tracing with Grafana Tempo



After implementing logs (Loki) and metrics (Prometheus), the final pillar of observability is distributed tracing. Grafana Tempo provides distributed tracing capabilities that help understand request flows across microservices.

For a preview of what distributed tracing with Tempo looks like in Grafana, see the X-RAG blog post:

X-RAG Observability Hackathon

Why Distributed Tracing?



In a microservices architecture, a single user request may traverse multiple services. Distributed tracing:


Deploying Grafana Tempo



Tempo is deployed in monolithic mode, following the same pattern as Loki's SingleBinary deployment.

#### Configuration Strategy

**Deployment Mode:** Monolithic (all components in one process)

**Storage:** Filesystem backend using hostPath

**OTLP Receivers:** Standard OpenTelemetry Protocol ports

#### Tempo Deployment Files

Created in /home/paul/git/conf/f3s/tempo/:

**values.yaml** - Helm chart configuration:

tempo:
  retention: 168h
  storage:
    trace:
      backend: local
      local:
        path: /var/tempo/traces
      wal:
        path: /var/tempo/wal
  receivers:
    otlp:
      protocols:
        grpc:
          endpoint: 0.0.0.0:4317
        http:
          endpoint: 0.0.0.0:4318

persistence:
  enabled: true
  size: 10Gi
  storageClassName: ""

resources:
  limits:
    cpu: 1000m
    memory: 2Gi
  requests:
    cpu: 500m
    memory: 1Gi

**persistent-volumes.yaml** - Storage configuration:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: tempo-data-pv
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /data/nfs/k3svolumes/tempo/data
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: tempo-data-pvc
  namespace: monitoring
spec:
  storageClassName: ""
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

**Grafana Datasource Provisioning**

All Grafana datasources (Prometheus, Alertmanager, Loki, Tempo) are provisioned via a unified ConfigMap that is directly mounted to the Grafana pod. This approach ensures datasources are loaded on startup without requiring sidecar-based discovery.

In /home/paul/git/conf/f3s/prometheus/grafana-datasources-all.yaml:

apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-datasources-all
  namespace: monitoring
data:
  datasources.yaml: |
    apiVersion: 1
    datasources:
      - name: Prometheus
        type: prometheus
        uid: prometheus
        url: http://prometheus-kube-prometheus-prometheus.monitoring:9090/
        access: proxy
        isDefault: true
      - name: Alertmanager
        type: alertmanager
        uid: alertmanager
        url: http://prometheus-kube-prometheus-alertmanager.monitoring:9093/
      - name: Loki
        type: loki
        uid: loki
        url: http://loki.monitoring.svc.cluster.local:3100
      - name: Tempo
        type: tempo
        uid: tempo
        url: http://tempo.monitoring.svc.cluster.local:3200
        jsonData:
          tracesToLogsV2:
            datasourceUid: loki
            spanStartTimeShift: -1h
            spanEndTimeShift: 1h
          tracesToMetrics:
            datasourceUid: prometheus
          serviceMap:
            datasourceUid: prometheus
          nodeGraph:
            enabled: true

The kube-prometheus-stack Helm values (persistence-values.yaml) are configured to:

This direct mounting approach is simpler and more reliable than sidecar-based discovery.

#### Installation

cd /home/paul/git/conf/f3s/tempo
just install

Verify Tempo is running:

kubectl get pods -n monitoring -l app.kubernetes.io/name=tempo
kubectl exec -n monitoring <tempo-pod> -- wget -qO- http://localhost:3200/ready

Configuring Grafana Alloy for Trace Collection



Updated /home/paul/git/conf/f3s/loki/alloy-values.yaml to add OTLP receivers for traces while maintaining existing log collection.

#### OTLP Receiver Configuration

Added to Alloy configuration after the log collection pipeline:

// OTLP receiver for traces via gRPC and HTTP
otelcol.receiver.otlp "default" {
  grpc {
    endpoint = "0.0.0.0:4317"
  }
  http {
    endpoint = "0.0.0.0:4318"
  }
  output {
    traces = [otelcol.processor.batch.default.input]
  }
}

// Batch processor for efficient trace forwarding
otelcol.processor.batch "default" {
  timeout = "5s"
  send_batch_size = 100
  send_batch_max_size = 200
  output {
    traces = [otelcol.exporter.otlp.tempo.input]
  }
}

// OTLP exporter to send traces to Tempo
otelcol.exporter.otlp "tempo" {
  client {
    endpoint = "tempo.monitoring.svc.cluster.local:4317"
    tls {
      insecure = true
    }
    compression = "gzip"
  }
}

The batch processor reduces network overhead by accumulating spans before forwarding to Tempo.

#### Upgrade Alloy

cd /home/paul/git/conf/f3s/loki
just upgrade

Verify OTLP receivers are listening:

kubectl logs -n monitoring -l app.kubernetes.io/name=alloy | grep -i "otlp.*receiver"
kubectl exec -n monitoring <alloy-pod> -- netstat -ln | grep -E ':(4317|4318)'

Demo Tracing Application



Created a three-tier Python application to demonstrate distributed tracing in action.

#### Application Architecture

User → Frontend (Flask:5000) → Middleware (Flask:5001) → Backend (Flask:5002)
           ↓                          ↓                        ↓
                    Alloy (OTLP:4317) → Tempo → Grafana

Frontend Service:


Middleware Service:


Backend Service:


OpenTelemetry Instrumentation:

All services use Python OpenTelemetry libraries:

**Dependencies:**
flask==3.0.0
requests==2.31.0
opentelemetry-distro==0.49b0
opentelemetry-exporter-otlp==1.28.0
opentelemetry-instrumentation-flask==0.49b0
opentelemetry-instrumentation-requests==0.49b0

**Auto-instrumentation pattern** (used in all services):

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.exporter.otlp.proto.grpc.trace_exporter import OTLPSpanExporter
from opentelemetry.instrumentation.flask import FlaskInstrumentor
from opentelemetry.instrumentation.requests import RequestsInstrumentor
from opentelemetry.sdk.resources import Resource

# Define service identity
resource = Resource(attributes={
    "service.name": "frontend",
    "service.namespace": "tracing-demo",
    "service.version": "1.0.0"
})

provider = TracerProvider(resource=resource)

# Export to Alloy
otlp_exporter = OTLPSpanExporter(
    endpoint="http://alloy.monitoring.svc.cluster.local:4317",
    insecure=True
)

processor = BatchSpanProcessor(otlp_exporter)
provider.add_span_processor(processor)
trace.set_tracer_provider(provider)

# Auto-instrument Flask and requests
FlaskInstrumentor().instrument_app(app)
RequestsInstrumentor().instrument()

The auto-instrumentation automatically:

Deployment:

Created Helm chart in /home/paul/git/conf/f3s/tracing-demo/ with three separate deployments, services, and an ingress.

Build and deploy:

cd /home/paul/git/conf/f3s/tracing-demo
just build
just import
just install

Verify deployment:

kubectl get pods -n services | grep tracing-demo
kubectl get ingress -n services tracing-demo-ingress

Access the application at:

http://tracing-demo.f3s.buetow.org

Visualizing Traces in Grafana



The Tempo datasource is automatically discovered by Grafana through the ConfigMap label.

#### Accessing Traces

Navigate to Grafana → Explore → Select "Tempo" datasource

**Search Interface:**

**TraceQL Queries:**

Find all traces from demo app:
{ resource.service.namespace = "tracing-demo" }

Find slow requests (>200ms):
{ duration > 200ms }

Find traces from specific service:
{ resource.service.name = "frontend" }

Find errors:
{ status = error }

Complex query - frontend traces calling middleware:
{ resource.service.namespace = "tracing-demo" } && { span.http.status_code >= 500 }

#### Service Graph Visualization

The service graph shows visual connections between services:

1. Navigate to Explore → Tempo
2. Enable "Service Graph" view
3. Shows: Frontend → Middleware → Backend with request rates

The service graph uses Prometheus metrics generated from trace data.

Correlation Between Observability Signals



Tempo integrates with Loki and Prometheus to provide unified observability.

#### Traces-to-Logs

Click on any span in a trace to see related logs:

1. View trace in Grafana
2. Click on a span
3. Select "Logs for this span"
4. Loki shows logs filtered by:
* Time range (span duration ± 1 hour)
* Service name
* Namespace
* Pod

This helps correlate what the service was doing when the span was created.

#### Traces-to-Metrics

View Prometheus metrics for services in the trace:

1. View trace in Grafana
2. Select "Metrics" tab
3. Shows metrics like:
* Request rate
* Error rate
* Duration percentiles

#### Logs-to-Traces

From logs, you can jump to related traces:

1. In Loki, logs that contain trace IDs are automatically linked
2. Click the trace ID to view the full trace
3. See the complete request flow

Generating Traces for Testing



Test the demo application:

curl http://tracing-demo.f3s.buetow.org/api/process

Load test (generates 50 traces):

cd /home/paul/git/conf/f3s/tracing-demo
just load-test

Each request creates a distributed trace spanning all three services.

Verifying the Complete Pipeline



Check the trace flow end-to-end:

**1. Application generates traces:**
kubectl logs -n services -l app=tracing-demo-frontend | grep -i trace

**2. Alloy receives traces:**
kubectl logs -n monitoring -l app.kubernetes.io/name=alloy | grep -i otlp

**3. Tempo stores traces:**
kubectl logs -n monitoring -l app.kubernetes.io/name=tempo | grep -i trace

**4. Grafana displays traces:**
Navigate to Explore → Tempo → Search for traces

Practical Example: Viewing a Distributed Trace



Let's generate a trace and examine it in Grafana.

**1. Generate a trace by calling the demo application:**

curl -H "Host: tracing-demo.f3s.buetow.org" http://r0/api/process

**Response (HTTP 200):**

{
  "middleware_response": {
    "backend_data": {
      "data": {
        "id": 12345,
        "query_time_ms": 100.0,
        "timestamp": "2025-12-28T18:35:01.064538",
        "value": "Sample data from backend service"
      },
      "service": "backend"
    },
    "middleware_processed": true,
    "original_data": {
      "source": "GET request"
    },
    "transformation_time_ms": 50
  },
  "request_data": {
    "source": "GET request"
  },
  "service": "frontend",
  "status": "success"
}

**2. Find the trace in Tempo via API:**

After a few seconds (for batch export), search for recent traces:

kubectl exec -n monitoring tempo-0 -- wget -qO- \
  'http://localhost:3200/api/search?tags=service.namespace%3Dtracing-demo&limit=5' 2>/dev/null | \
  python3 -m json.tool

Returns traces including:

{
  "traceID": "4be1151c0bdcd5625ac7e02b98d95bd5",
  "rootServiceName": "frontend",
  "rootTraceName": "GET /api/process",
  "durationMs": 221
}

**3. Fetch complete trace details:**

kubectl exec -n monitoring tempo-0 -- wget -qO- \
  'http://localhost:3200/api/traces/4be1151c0bdcd5625ac7e02b98d95bd5' 2>/dev/null | \
  python3 -m json.tool

**Trace structure (8 spans across 3 services):**

Trace ID: 4be1151c0bdcd5625ac7e02b98d95bd5
Services: 3 (frontend, middleware, backend)

Service: frontend
  └─ GET /api/process                 221.10ms  (HTTP server span)
  └─ frontend-process                 216.23ms  (custom business logic span)
  └─ POST                             209.97ms  (HTTP client span to middleware)

Service: middleware
  └─ POST /api/transform              186.02ms  (HTTP server span)
  └─ middleware-transform             180.96ms  (custom business logic span)
  └─ GET                              127.52ms  (HTTP client span to backend)

Service: backend
  └─ GET /api/data                    103.93ms  (HTTP server span)
  └─ backend-get-data                 102.11ms  (custom business logic span with 100ms sleep)

**4. View the trace in Grafana UI:**

Navigate to: Grafana → Explore → Tempo datasource

Search using TraceQL:
{ resource.service.namespace = "tracing-demo" }

Or directly open the trace by pasting the trace ID in the search box:
4be1151c0bdcd5625ac7e02b98d95bd5

**5. Trace visualization:**

The trace waterfall view in Grafana shows the complete request flow with timing:

Distributed trace visualization in Grafana Tempo showing Frontend → Middleware → Backend spans

For additional examples of Tempo trace visualization, see also:

X-RAG Observability Hackathon (more Grafana Tempo screenshots)

The trace reveals the distributed request flow:


**6. Service graph visualization:**

The service graph is automatically generated from traces and shows service dependencies. For examples of service graph visualization in Grafana, see the screenshots in the X-RAG Observability Hackathon blog post.

X-RAG Observability Hackathon (includes service graph screenshots)

This visualization helps identify:


Storage and Retention



Monitor Tempo storage usage:

kubectl exec -n monitoring <tempo-pod> -- df -h /var/tempo

With 10Gi storage and 7-day retention, the system handles moderate trace volumes. If storage fills up:


Configuration Files



All configuration files are available on Codeberg:

Tempo configuration
Alloy configuration (updated for traces)
Demo tracing application

Summary



With Prometheus, Grafana, Loki, Alloy, and Tempo deployed, I now have complete visibility into the k3s cluster, the FreeBSD storage servers, and the OpenBSD edge relays:


This observability stack runs entirely on the home lab infrastructure, with data persisted to the NFS share. It's lightweight enough for a three-node cluster but provides the same capabilities as production-grade setups.

All configuration files are available on Codeberg:

Prometheus, Grafana, and recording rules configuration
Loki and Alloy configuration
Tempo configuration
Demo tracing application

Other *BSD-related posts:

2025-12-07 f3s: Kubernetes with FreeBSD - Part 8: Observability (You are currently reading this)
2025-10-02 f3s: Kubernetes with FreeBSD - Part 7: k3s and first pod deployments
2025-07-14 f3s: Kubernetes with FreeBSD - Part 6: Storage
2025-05-11 f3s: Kubernetes with FreeBSD - Part 5: WireGuard mesh network
2025-04-05 f3s: Kubernetes with FreeBSD - Part 4: Rocky Linux Bhyve VMs
2025-02-01 f3s: Kubernetes with FreeBSD - Part 3: Protecting from power cuts
2024-12-03 f3s: Kubernetes with FreeBSD - Part 2: Hardware and base installation
2024-11-17 f3s: Kubernetes with FreeBSD - Part 1: Setting the stage
2024-04-01 KISS high-availability with OpenBSD
2024-01-13 One reason why I love OpenBSD
2022-10-30 Installing DTail on OpenBSD
2022-07-30 Let's Encrypt with OpenBSD and Rex
2016-04-09 Jails and ZFS with Puppet on FreeBSD

E-Mail your comments to paul@nospam.buetow.org

Back to the main site

Generated with Gemtexter 3.0.1-develop | served by OpenBSD/relayd(8)+httpd(8) | Site Mirrors
Webring: previous | shring | next
