Introduction

In the previous posts, we set up a WireGuard mesh network. In the future, we will also set up a Kubernetes cluster. Kubernetes workloads often require persistent storage for databases, configuration files, and application data. Local storage on each node has significant limitations:

No data sharing: Pods (once we run Kubernetes) on different nodes can't access the same data
Pod mobility: If a pod moves to another node, it loses access to its data
No redundancy: Hardware failure means data loss

In this post, I set up the storage using:

CARP: For high availability with automatic IP failover
NFS over stunnel: For secure, encrypted network storage
ZFS: For data integrity, encryption, and efficient snapshots
zrepl: For continuous ZFS replication between nodes

The result: encrypted, replicated storage that all pods can share and that survives a node failure.

Other than what was mentioned in the first post of this blog series, we aren't using HAST, but zrepl for data replication. Read more about it later in this blog post.

Additional storage capacity

We add 1 TB of additional storage to each of the nodes (f0, f1, f2) in the form of an SSD drive. The Beelink mini PCs have enough space in the chassis for the extra space.

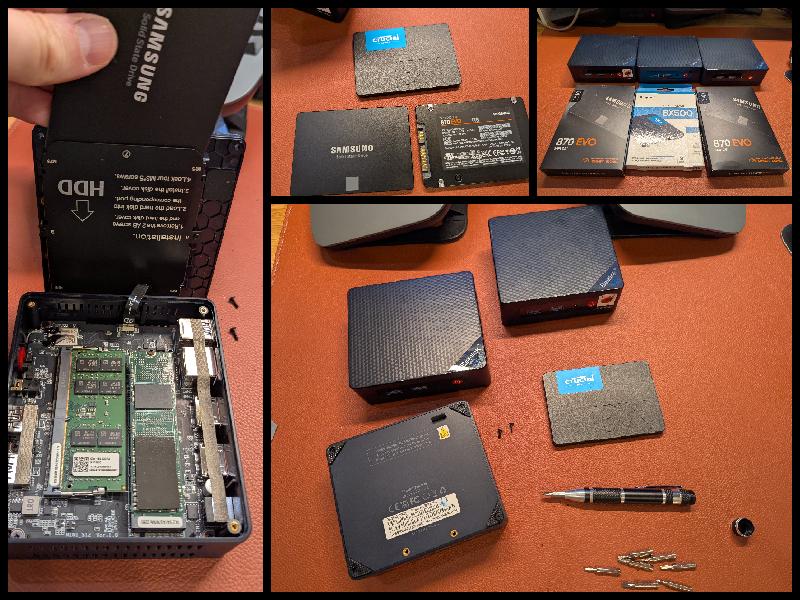

Upgrading the storage was as easy as unscrewing, plugging the drive in, and then screwing it back together again. The procedure was uneventful! We're using two different SSD models (Samsung 870 EVO and Crucial BX500) to avoid simultaneous failures from the same manufacturing batch.

We then create the zdata ZFS pool on all three nodes:

paul@f0:~ % doas zpool create -m /data zdata /dev/ada1
paul@f0:~ % zpool list
NAME    SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
zdata   928G  12.1M   928G        -         -     0%     0%  1.00x    ONLINE  -
zroot   472G  29.0G   443G        -         -     0%     6%  1.00x    ONLINE  -

paul@f0:/ % doas camcontrol devlist
<512GB SSD D910R170>               at scbus0 target 0 lun 0 (pass0,ada0)
<Samsung SSD 870 EVO 1TB SVT03B6Q>  at scbus1 target 0 lun 0 (pass1,ada1)
paul@f0:/ %

To verify that we have a different SSD on the second node (the third node has the same drive as the first):

paul@f1:/ % doas camcontrol devlist
<512GB SSD D910R170>               at scbus0 target 0 lun 0 (pass0,ada0)
<CT1000BX500SSD1 M6CR072>          at scbus1 target 0 lun 0 (pass1,ada1)

ZFS encryption keys

ZFS native encryption requires encryption keys to unlock datasets. The keys have to live somewhere safe, but they also have to be there at boot:

Security: Keys must not be stored on the same disks they encrypt
Availability: Keys must be available at boot for automatic mounting
Portability: Keys should be easily moved between systems for recovery

I put the keys on USB sticks. Without the stick, the disks are unreadable, which covers disk theft and sloppy disposal. A real production setup would use a proper key management system, but for a home lab, USB sticks are good enough and simple.

UFS on USB keys

We'll format the USB drives with UFS (Unix File System) rather than ZFS for simplicity. There is no need to use ZFS.

Let's see the USB keys:

To verify that the USB key (flash disk) is there:

paul@f0:/ % doas camcontrol devlist
<512GB SSD D910R170>               at scbus0 target 0 lun 0 (pass0,ada0)
<Samsung SSD 870 EVO 1TB SVT03B6Q>  at scbus1 target 0 lun 0 (pass1,ada1)
<Generic Flash Disk 8.07>          at scbus2 target 0 lun 0 (da0,pass2)
paul@f0:/ %

Let's create the UFS file system and mount it (done on all three nodes f0, f1 and f2):

paul@f0:/ % doas newfs /dev/da0
/dev/da0: 15000.0MB (30720000 sectors) block size 32768, fragment size 4096
        using 24 cylinder groups of 625.22MB, 20007 blks, 80128 inodes.
        with soft updates
super-block backups (for fsck_ffs -b #) at:
 192, 1280640, 2561088, 3841536, 5121984, 6402432, 7682880, 8963328, 10243776,
11524224, 12804672, 14085120, 15365568, 16646016, 17926464, 19206912,k 20487360,
...

paul@f0:/ % echo '/dev/da0 /keys ufs rw 0 2' | doas tee -a /etc/fstab
/dev/da0 /keys ufs rw 0 2
paul@f0:/ % doas mkdir /keys
paul@f0:/ % doas mount /keys
paul@f0:/ % df | grep keys
/dev/da0             14877596       8  13687384     0%    /keys

Generating encryption keys

The following keys will later be used to encrypt the ZFS file systems. They will be stored on all three nodes, serving as a backup in case one of the keys is lost or corrupted. When we later replicate encrypted ZFS volumes from one node to another, the keys must also be available on the destination node.

paul@f0:/keys % doas openssl rand -out /keys/f0.lan.buetow.org:bhyve.key 32
paul@f0:/keys % doas openssl rand -out /keys/f1.lan.buetow.org:bhyve.key 32
paul@f0:/keys % doas openssl rand -out /keys/f2.lan.buetow.org:bhyve.key 32
paul@f0:/keys % doas openssl rand -out /keys/f0.lan.buetow.org:zdata.key 32
paul@f0:/keys % doas openssl rand -out /keys/f1.lan.buetow.org:zdata.key 32
paul@f0:/keys % doas openssl rand -out /keys/f2.lan.buetow.org:zdata.key 32
paul@f0:/keys % doas chown root *
paul@f0:/keys % doas chmod 400 *

paul@f0:/keys % ls -l
total 20
*r--------  1 root wheel 32 May 25 13:07 f0.lan.buetow.org:bhyve.key
*r--------  1 root wheel 32 May 25 13:07 f1.lan.buetow.org:bhyve.key
*r--------  1 root wheel 32 May 25 13:07 f2.lan.buetow.org:bhyve.key
*r--------  1 root wheel 32 May 25 13:07 f0.lan.buetow.org:zdata.key
*r--------  1 root wheel 32 May 25 13:07 f1.lan.buetow.org:zdata.key
*r--------  1 root wheel 32 May 25 13:07 f2.lan.buetow.org:zdata.key

After creation, these are copied to the other two nodes, f1 and f2, into the /keys partition (I won't provide the commands here; create a tarball, copy it over, and extract it on the destination nodes).

Configuring zdata ZFS pool encryption

Let's encrypt our zdata ZFS pool. We are not encrypting the whole pool, but everything within the zdata/enc data set:

paul@f0:/keys % doas zfs create -o encryption=on -o keyformat=raw -o \
  keylocation=file:///keys/`hostname`:zdata.key zdata/enc
paul@f0:/ % zfs list | grep zdata
zdata                                          836K   899G    96K  /data
zdata/enc                                      200K   899G   200K  /data/enc

paul@f0:/keys % zfs get all zdata/enc | grep -E -i '(encryption|key)'
zdata/enc  encryption            aes-256-gcm                               -
zdata/enc  keylocation           file:///keys/f0.lan.buetow.org:zdata.key  local
zdata/enc  keyformat             raw                                       -
zdata/enc  encryptionroot        zdata/enc                                 -
zdata/enc  keystatus             available                                 -

All future data sets within zdata/enc will inherit the same encryption key.

Migrating Bhyve VMs to an encrypted bhyve ZFS volume

We set up Bhyve VMs in a previous blog post. Their ZFS data sets rely on zroot, which is the default ZFS pool on the internal 512GB NVME drive. They aren't encrypted yet, so we encrypt the VM data sets as well now. To do so, we first shut down the VMs on all three nodes:

paul@f0:/keys % doas vm stop rocky
Sending ACPI shutdown to rocky

paul@f0:/keys % doas vm list
NAME     DATASTORE  LOADER     CPU  MEMORY  VNC  AUTO     STATE
rocky    default    uefi       4    14G     -    Yes [1]  Stopped

After this, we rename the unencrypted data set to _old, create a new encrypted data set, and also snapshot it as @hamburger.

paul@f0:/keys % doas zfs rename zroot/bhyve zroot/bhyve_old
paul@f0:/keys % doas zfs set mountpoint=/mnt zroot/bhyve_old
paul@f0:/keys % doas zfs snapshot zroot/bhyve_old/rocky@hamburger

paul@f0:/keys % doas zfs create -o encryption=on -o keyformat=raw -o \
  keylocation=file:///keys/`hostname`:bhyve.key zroot/bhyve
paul@f0:/keys % doas zfs set mountpoint=/zroot/bhyve zroot/bhyve
paul@f0:/keys % doas zfs set mountpoint=/zroot/bhyve/rocky zroot/bhyve/rocky

Once done, we import the snapshot into the encrypted dataset and also copy some other metadata files from vm-bhyve back over.

paul@f0:/keys % doas zfs send zroot/bhyve_old/rocky@hamburger | \
  doas zfs recv zroot/bhyve/rocky
paul@f0:/keys % doas cp -Rp /mnt/.config /zroot/bhyve/
paul@f0:/keys % doas cp -Rp /mnt/.img /zroot/bhyve/
paul@f0:/keys % doas cp -Rp /mnt/.templates /zroot/bhyve/
paul@f0:/keys % doas cp -Rp /mnt/.iso /zroot/bhyve/

We also have to make encrypted ZFS data sets mount automatically on boot:

paul@f0:/keys % doas sysrc zfskeys_enable=YES
zfskeys_enable:  -> YES
paul@f0:/keys % doas vm init
paul@f0:/keys % doas reboot
.
.
.
paul@f0:~ % doas vm list
paul@f0:~ % doas vm list
NAME     DATASTORE  LOADER     CPU  MEMORY  VNC           AUTO     STATE
rocky    default    uefi       4    14G     0.0.0.0:5900  Yes [1]  Running (2265)

As you can see, the VM is running. This means the encrypted zroot/bhyve was mounted successfully after the reboot! Now we can destroy the old, unencrypted, and now unused bhyve dataset:

paul@f0:~ % doas zfs destroy -R zroot/bhyve_old

To verify once again that zroot/bhyve and zroot/bhyve/rocky are now both encrypted, we run:

paul@f0:~ % zfs get all zroot/bhyve | grep -E '(encryption|key)'
zroot/bhyve  encryption            aes-256-gcm                               -
zroot/bhyve  keylocation           file:///keys/f0.lan.buetow.org:bhyve.key  local
zroot/bhyve  keyformat             raw                                       -
zroot/bhyve  encryptionroot        zroot/bhyve                               -
zroot/bhyve  keystatus             available                                 -

paul@f0:~ % zfs get all zroot/bhyve/rocky | grep -E '(encryption|key)'
zroot/bhyve/rocky  encryption            aes-256-gcm            -
zroot/bhyve/rocky  keylocation           none                   default
zroot/bhyve/rocky  keyformat             raw                    -
zroot/bhyve/rocky  encryptionroot        zroot/bhyve            -
zroot/bhyve/rocky  keystatus             available              -

ZFS Replication with zrepl

CARP (see later in this post) only moves the IP address. The backup node also needs current data, so we need continuous replication. Without it, a failover means data loss, or we'd need shared storage like iSCSI, which is a single point of failure.

Replication requirements

Our storage system has different replication needs:

NFS data (/data/nfs/k3svolumes): Soon, it will contain active Kubernetes persistent volumes. Needs frequent replication (every minute) to minimise data loss during failover.
VM data (/zroot/bhyve/freebsd): Contains VM images that change less frequently. Can tolerate longer replication intervals (every 10 minutes).

The 1-minute replication window is perfectly acceptable for my personal use cases. It's a home lab, not a trading system. Losing at most 1 minute of work in a disaster scenario is a reasonable trade-off for the reliability and simplicity of snapshot-based replication. Additionally, in the case of a "1 minute of data loss," I would likely still have the data available on the client side.

Why use zrepl instead of HAST? While HAST (Highly Available Storage) is FreeBSD's native solution for high-availability storage and supports synchronous replication—thus eliminating the mentioned 1-minute window—I've chosen zrepl for a few reasons:

HAST can cause ZFS corruption: HAST operates at the block level and doesn't understand ZFS's transactional semantics. During failover, in-flight transactions can lead to corrupted zpools. I've experienced this firsthand (I am confident I have configured something wrong) - the automatic failover would trigger while ZFS was still writing, resulting in an unmountable pool.
ZFS-aware replication: zrepl understands ZFS datasets and snapshots. It replicates at the dataset level, ensuring each snapshot is a consistent point-in-time copy.
Snapshot history: With zrepl, you get multiple recovery points (every minute for NFS data in our setup). If corruption occurs, you can roll back to any previous snapshot. HAST only gives you the current state.
Easier recovery: When something goes wrong with zrepl, you still have intact snapshots on both sides. With HAST, a corrupted primary often means a corrupted secondary as well.

FreeBSD HAST

Installing zrepl

First, install zrepl on both hosts involved (we will replicate data from f0 to f1):

paul@f0:~ % doas pkg install -y zrepl

Then, we verify the pools and datasets on both hosts:

# On f0
paul@f0:~ % doas zpool list
NAME    SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
zdata   928G  1.03M   928G        -         -     0%     0%  1.00x    ONLINE  -
zroot   472G  26.7G   445G        -         -     0%     5%  1.00x    ONLINE  -

paul@f0:~ % doas zfs list -r zdata/enc
NAME        USED  AVAIL  REFER  MOUNTPOINT
zdata/enc   200K   899G   200K  /data/enc

# On f1
paul@f1:~ % doas zpool list
NAME    SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
zdata   928G   956K   928G        -         -     0%     0%  1.00x    ONLINE  -
zroot   472G  11.7G   460G        -         -     0%     2%  1.00x    ONLINE  -

paul@f1:~ % doas zfs list -r zdata/enc
NAME        USED  AVAIL  REFER  MOUNTPOINT
zdata/enc   200K   899G   200K  /data/enc

Since we have a WireGuard tunnel between f0 and f1, we'll use TCP transport over the secure tunnel instead of SSH. First, check the WireGuard IP addresses:

# Check WireGuard interface IPs
paul@f0:~ % ifconfig wg0 | grep inet
	inet 192.168.2.130 netmask 0xffffff00

paul@f1:~ % ifconfig wg0 | grep inet
	inet 192.168.2.131 netmask 0xffffff00

Let's create a dedicated dataset for NFS data that will be replicated:

# Create the nfsdata dataset that will hold all data exposed via NFS
paul@f0:~ % doas zfs create zdata/enc/nfsdata

Afterwards, we create the zrepl configuration on f0:

paul@f0:~ % doas tee /usr/local/etc/zrepl/zrepl.yml <<'EOF'
global:
  logging:
    - type: stdout
      level: info
      format: human

jobs:
  - name: f0_to_f1_nfsdata
    type: push
    connect:
      type: tcp
      address: "192.168.2.131:8888"
    filesystems:
      "zdata/enc/nfsdata": true
    send:
      encrypted: true
    snapshotting:
      type: periodic
      prefix: zrepl_
      interval: 1m
    pruning:
      keep_sender:
        - type: last_n
          count: 10
        - type: grid
          grid: 4x7d | 6x30d
          regex: "^zrepl_.*"
      keep_receiver:
        - type: last_n
          count: 10
        - type: grid
          grid: 4x7d | 6x30d
          regex: "^zrepl_.*"

  - name: f0_to_f1_freebsd
    type: push
    connect:
      type: tcp
      address: "192.168.2.131:8888"
    filesystems:
      "zroot/bhyve/freebsd": true
    send:
      encrypted: true
    snapshotting:
      type: periodic
      prefix: zrepl_
      interval: 10m
    pruning:
      keep_sender:
        - type: last_n
          count: 10
        - type: grid
          grid: 4x7d
          regex: "^zrepl_.*"
      keep_receiver:
        - type: last_n
          count: 10
        - type: grid
          grid: 4x7d
          regex: "^zrepl_.*"
EOF

We're using two separate replication jobs with different intervals:

f0_to_f1_nfsdata: Replicates NFS data every minute for faster failover recovery
f0_to_f1_freebsd: Replicates FreeBSD VM every ten minutes (less critical)

The FreeBSD VM is only used for development purposes, so it doesn't require as frequent replication as the NFS data. It's off-topic for this series, but it shows that zrepl can handle different datasets with different intervals.

Also:

We're specifically replicating zdata/enc/nfsdata instead of the entire zdata/enc dataset. This dedicated dataset will contain all the data we later want to expose via NFS, keeping a clear separation between replicated NFS data and other local encrypted data.
We use send: encrypted: true to keep the replication stream encrypted. While WireGuard already encrypts in transit, this provides additional protection. For reduced CPU overhead, you could set encrypted: false since the tunnel is secure.

Configuring zrepl on f1 (sink)

On f1 (the sink, meaning it's the node receiving the replication data), we configure zrepl to receive the data as follows:

# First, create a dedicated sink dataset
paul@f1:~ % doas zfs create zdata/sink

paul@f1:~ % doas tee /usr/local/etc/zrepl/zrepl.yml <<'EOF'
global:
  logging:
    - type: stdout
      level: info
      format: human

jobs:
  - name: sink
    type: sink
    serve:
      type: tcp
      listen: "192.168.2.131:8888"
      clients:
        "192.168.2.130": "f0"
    recv:
      placeholder:
        encryption: inherit
    root_fs: "zdata/sink"
EOF

Enabling and starting zrepl services

We then enable and start zrepl on both hosts via:

# On f0
paul@f0:~ % doas sysrc zrepl_enable=YES
zrepl_enable:  -> YES
paul@f0:~ % doas service `zrepl` start
Starting zrepl.

# On f1
paul@f1:~ % doas sysrc zrepl_enable=YES
zrepl_enable:  -> YES
paul@f1:~ % doas service `zrepl` start
Starting zrepl.

To check the replication status, we run:

# On f0, check `zrepl` status (use raw mode for non-tty)
paul@f0:~ % doas pkg install jq
paul@f0:~ % doas zrepl status --mode raw | grep -A2 "Replication" | jq .
"Replication":{"StartAt":"2025-07-01T22:31:48.712143123+03:00"...

# Check if services are running
paul@f0:~ % doas service zrepl status
zrepl is running as pid 2649.

paul@f1:~ % doas service zrepl status
zrepl is running as pid 2574.

# Check for `zrepl` snapshots on source
paul@f0:~ % doas zfs list -t snapshot -r zdata/enc | grep zrepl
zdata/enc@zrepl_20250701_193148_000    0B      -   176K  -

# On f1, verify the replicated datasets
paul@f1:~ % doas zfs list -r zdata | grep f0
zdata/f0             576K   899G   200K  none
zdata/f0/zdata       376K   899G   200K  none
zdata/f0/zdata/enc   176K   899G   176K  none

# Check replicated snapshots on f1
paul@f1:~ % doas zfs list -t snapshot -r zdata | grep zrepl
zdata/f0/zdata/enc@zrepl_20250701_193148_000     0B      -   176K  -
zdata/f0/zdata/enc@zrepl_20250701_194148_000     0B      -   176K  -
.
.
.

Monitoring replication

You can monitor the replication progress with:

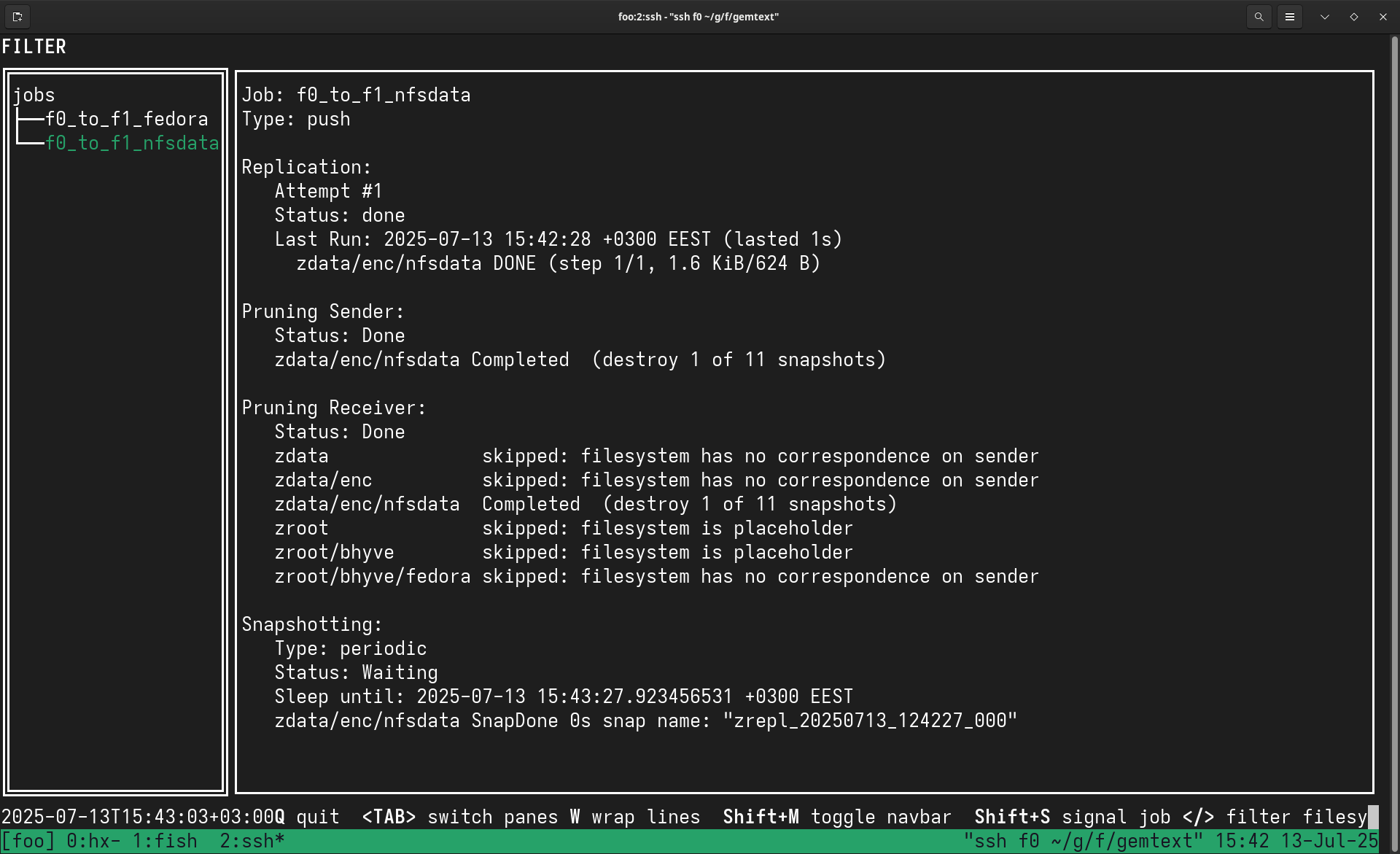

paul@f0:~ % doas zrepl status

With this setup, both zdata/enc/nfsdata and zroot/bhyve/freebsd on f0 will be automatically replicated to f1 every 1 minute (or 10 minutes in the case of the FreeBSD VM), with encrypted snapshots preserved on both sides. The pruning policy keeps the last 10 snapshots plus the grid, so disk space doesn't run away.

The replicated data appears on f1 under zdata/sink/ with the source host and dataset hierarchy preserved:

zdata/enc/nfsdata → zdata/sink/f0/zdata/enc/nfsdata
zroot/bhyve/freebsd → zdata/sink/f0/zroot/bhyve/freebsd

This is by design - zrepl preserves the complete path from the source to ensure there are no conflicts when replicating from multiple sources.

Verifying replication after reboot

The zrepl service is configured to start automatically at boot. After rebooting both hosts:

paul@f0:~ % uptime
11:17PM  up 1 min, 0 users, load averages: 0.16, 0.06, 0.02

paul@f0:~ % doas service `zrepl` status
zrepl is running as pid 2366.

paul@f1:~ % doas service `zrepl` status
zrepl is running as pid 2309.

# Check that new snapshots are being created and replicated
paul@f0:~ % doas zfs list -t snapshot | grep `zrepl` | tail -2
zdata/enc/nfsdata@zrepl_20250701_202530_000                0B      -   200K  -
zroot/bhyve/freebsd@zrepl_20250701_202530_000               0B      -  2.97G  -
.
.
.

paul@f1:~ % doas zfs list -t snapshot -r zdata/sink | grep 202530
zdata/sink/f0/zdata/enc/nfsdata@zrepl_20250701_202530_000      0B      -   176K  -
zdata/sink/f0/zroot/bhyve/freebsd@zrepl_20250701_202530_000     0B      -  2.97G  -
.
.
.

The timestamps show that replication picked up again after the reboot. We can also write a test file to the NFS data directory on f0 and verify whether it appears on f1 after a minute.

Failover limitations

Our system intentionally fails over to a read-only copy of the replica in the event of the primary's failure. This is due to the nature of zrepl, which only replicates data in one direction. If we mount the data set on the sink node in read-write mode, it would cause the ZFS dataset to diverge from the original, and the replication would break. It can still be mounted read-write on the sink node in case of a genuine issue on the primary node, but that step is left intentionally manual. Therefore, we don't need to fix the replication later on manually.

The short version: automatic read-write failover risks split-brain if the network hiccups, and I'd rather have a few minutes of downtime than two diverged datasets. With manual failover, I always know which copy is the real one.

Mounting the NFS datasets

To make the NFS data accessible on both nodes, we need to mount it. On f0, this is straightforward:

# On f0 - set mountpoint for the primary nfsdata
paul@f0:~ % doas zfs set mountpoint=/data/nfs zdata/enc/nfsdata
paul@f0:~ % doas mkdir -p /data/nfs

# Verify it's mounted
paul@f0:~ % df -h /data/nfs
Filesystem           Size    Used   Avail Capacity  Mounted on
zdata/enc/nfsdata    899G    204K    899G     0%    /data/nfs

On f1, we need to handle the encryption key and mount the standby copy:

# On f1 - first check encryption status
paul@f1:~ % doas zfs get keystatus zdata/sink/f0/zdata/enc/nfsdata
NAME                             PROPERTY   VALUE        SOURCE
zdata/sink/f0/zdata/enc/nfsdata  keystatus  unavailable  -

# Load the encryption key (using f0's key stored on the USB)
paul@f1:~ % doas zfs load-key -L file:///keys/f0.lan.buetow.org:zdata.key \
    zdata/sink/f0/zdata/enc/nfsdata

# Set mountpoint and mount (same path as f0 for easier failover)
paul@f1:~ % doas mkdir -p /data/nfs
paul@f1:~ % doas zfs set mountpoint=/data/nfs zdata/sink/f0/zdata/enc/nfsdata
paul@f1:~ % doas zfs mount zdata/sink/f0/zdata/enc/nfsdata

# Make it read-only to prevent accidental writes that would break replication
paul@f1:~ % doas zfs set readonly=on zdata/sink/f0/zdata/enc/nfsdata

# Verify
paul@f1:~ % df -h /data/nfs
Filesystem                         Size    Used   Avail Capacity  Mounted on
zdata/sink/f0/zdata/enc/nfsdata    896G    204K    896G     0%    /data/nfs

Note: The dataset is mounted at the same path (/data/nfs) on both hosts to simplify failover procedures. The dataset on f1 is set to readonly=on to prevent accidental modifications, which, as mentioned earlier, would break replication. If we did, replication from f0 to f1 would fail like this:

cannot receive incremental stream: destination zdata/sink/f0/zdata/enc/nfsdata has been modified since most recent snapshot

To fix a broken replication after accidental writes, we can do:

# Option 1: Rollback to the last common snapshot (loses local changes)
paul@f1:~ % doas zfs rollback zdata/sink/f0/zdata/enc/nfsdata@zrepl_20250701_204054_000

# Option 2: Make it read-only to prevent accidents again
paul@f1:~ % doas zfs set readonly=on zdata/sink/f0/zdata/enc/nfsdata

And replication should work again!

Troubleshooting: Files not appearing in replication

If you write files to /data/nfs/ on f0 but they don't appear on f1, check if the dataset is mounted on f0?

paul@f0:~ % doas zfs list -o name,mountpoint,mounted | grep nfsdata
zdata/enc/nfsdata                             /data/nfs             yes

If it shows no, the dataset isn't mounted! This means files are being written to the root filesystem, not ZFS. Next, we should check whether the encryption key is loaded:

paul@f0:~ % doas zfs get keystatus zdata/enc/nfsdata
NAME               PROPERTY   VALUE        SOURCE
zdata/enc/nfsdata  keystatus  available    -
# If "unavailable", load the key:
paul@f0:~ % doas zfs load-key -L file:///keys/f0.lan.buetow.org:zdata.key zdata/enc/nfsdata
paul@f0:~ % doas zfs mount zdata/enc/nfsdata

You can also verify that files are in the snapshot (not just the directory):

paul@f0:~ % ls -la /data/nfs/.zfs/snapshot/zrepl_*/

This issue commonly occurs after a reboot if the encryption keys aren't configured to load automatically.

Configuring automatic key loading on boot

To ensure all additional encrypted datasets are mounted automatically after reboot as well, we do:

# On f0 - configure all encrypted datasets
paul@f0:~ % doas sysrc zfskeys_enable=YES
zfskeys_enable: YES -> YES
paul@f0:~ % doas sysrc zfskeys_datasets="zdata/enc zdata/enc/nfsdata zroot/bhyve"
zfskeys_datasets:  -> zdata/enc zdata/enc/nfsdata zroot/bhyve

# Set correct key locations for all datasets
paul@f0:~ % doas zfs set \
  keylocation=file:///keys/f0.lan.buetow.org:zdata.key zdata/enc/nfsdata

# On f1 - include the replicated dataset
paul@f1:~ % doas sysrc zfskeys_enable=YES
zfskeys_enable: YES -> YES
paul@f1:~ % doas sysrc \
  zfskeys_datasets="zdata/enc zroot/bhyve zdata/sink/f0/zdata/enc/nfsdata"
zfskeys_datasets:  -> zdata/enc zroot/bhyve zdata/sink/f0/zdata/enc/nfsdata

# Set key location for replicated dataset
paul@f1:~ % doas zfs set \
  keylocation=file:///keys/f0.lan.buetow.org:zdata.key zdata/sink/f0/zdata/enc/nfsdata

Important notes:

Each encryption root needs its own key load entry
The replicated dataset on f1 uses the same encryption key as the source on f0
Always verify datasets are mounted after reboot with zfs list -o name,mounted
Critical: Always ensure the replicated dataset on f1 remains read-only with doas zfs set readonly=on zdata/sink/f0/zdata/enc/nfsdata

Troubleshooting: zrepl Replication Not Working

If zrepl replication is not working, here's what I check:

Check if zrepl Services are Running

First, verify that zrepl is running on both nodes:

# Check service status on both f0 and f1
paul@f0:~ % doas service zrepl status
paul@f1:~ % doas service zrepl status

# If not running, start the service
paul@f0:~ % doas service zrepl start
paul@f1:~ % doas service zrepl start

Check zrepl Status for Errors

Use the status command to see detailed error information:

# Check detailed status (use --mode raw for non-tty environments)
paul@f0:~ % doas zrepl status --mode raw

# Look for error messages in the replication section
# Common errors include "no common snapshot" or connection failures

Fixing "No Common Snapshot" Errors

This is the most common replication issue, typically occurring when:

The receiver has existing snapshots that don't match the sender
Different snapshot naming schemes are in use
The receiver dataset was created independently

Error message example:

no common snapshot or suitable bookmark between sender and receiver

Solution: clean up conflicting snapshots on the receiver.

# First, identify the destination dataset on f1
paul@f1:~ % doas zfs list | grep sink

# Check existing snapshots on the problematic dataset
paul@f1:~ % doas zfs list -t snapshot | grep nfsdata

# If you see snapshots with different naming (e.g., @daily-*, @weekly-*)
# these conflict with zrepl's @zrepl_* snapshots

# Destroy the entire destination dataset to allow clean replication
paul@f1:~ % doas zfs destroy -r zdata/sink/f0/zdata/enc/nfsdata

# For VM replication, do the same for the freebsd dataset
paul@f1:~ % doas zfs destroy -r zdata/sink/f0/zroot/bhyve/freebsd

# Wake up zrepl to start fresh replication
paul@f0:~ % doas zrepl signal wakeup f0_to_f1_nfsdata
paul@f0:~ % doas zrepl signal wakeup f0_to_f1_freebsd

# Check replication status
paul@f0:~ % doas zrepl status --mode raw

To verify that replication is working:

# Look for "stepping" state and active zfs send processes
paul@f0:~ % doas zrepl status --mode raw | grep -A5 "State.*stepping"

# Check for active ZFS commands
paul@f0:~ % doas zrepl status --mode raw | grep -A10 "ZFSCmds.*Active"

# Monitor progress - bytes replicated should be increasing
paul@f0:~ % doas zrepl status --mode raw | grep BytesReplicated

Network Connectivity Issues

If replication fails to connect:

# Test connectivity between nodes
paul@f0:~ % nc -zv 192.168.2.131 8888

# Check if zrepl is listening on f1
paul@f1:~ % doas netstat -an | grep 8888

# Verify WireGuard tunnel is working
paul@f0:~ % ping 192.168.2.131

Encryption Key Issues

If encrypted replication fails:

# Verify encryption keys are available on both nodes
paul@f0:~ % doas zfs get keystatus zdata/enc/nfsdata
paul@f1:~ % doas zfs get keystatus zdata/sink/f0/zdata/enc/nfsdata

# Load keys if unavailable
paul@f1:~ % doas zfs load-key -L file:///keys/f0.lan.buetow.org:zdata.key \
    zdata/sink/f0/zdata/enc/nfsdata

Monitoring Ongoing Replication

After fixing issues, monitor replication health:

# Monitor replication progress (run repeatedly to check status)
paul@f0:~ % doas zrepl status --mode raw | grep -A10 BytesReplicated

# Or install watch from ports and use it
paul@f0:~ % doas pkg install watch
paul@f0:~ % watch -n 5 'doas zrepl status --mode raw | grep -A10 BytesReplicated'

# Check for new snapshots being created
paul@f0:~ % doas zfs list -t snapshot | grep zrepl | tail -5

# Verify snapshots appear on receiver
paul@f1:~ % doas zfs list -t snapshot -r zdata/sink | grep zrepl | tail -5

CARP (Common Address Redundancy Protocol)

If the storage server goes down, all NFS clients (later: the Kubernetes pods) lose their persistent data. CARP helps here: it creates a virtual IP that moves to the other server when the current one fails. Clients mount from the VIP and always end up at the current primary.

How CARP Works

In our case, CARP allows two hosts (f0 and f1) to share a virtual IP address (VIP). The hosts communicate using multicast to elect a MASTER, while the other remain as BACKUP. When the MASTER fails, the BACKUP automatically promotes itself, and the VIP is reassigned to the new MASTER. This happens within seconds.

Key benefits for our storage system:

Automatic failover: No manual intervention is required for basic failures, although there are a few limitations. The backup will have read-only access to the available data by default, as we have already learned.
Transparent to clients: Pods continue using the same IP address
Works with stunnel: Behind the VIP, there will be a stunnel process running, which ensures encrypted connections follow the active server.

FreeBSD CARP
Stunnel

Configuring CARP

First, we add the CARP configuration to /etc/rc.conf on both f0 and f1:

Update: Sun 4 Jan 00:17:00 EET 2026 - Added advskew 100 to f1 so f0 always wins CARP elections when it comes back online after a reboot.

# On f0 - The virtual IP 192.168.1.138 will float between f0 and f1
ifconfig_re0_alias0="inet vhid 1 pass testpass alias 192.168.1.138/32"

# On f1 - Higher advskew means lower priority, so f0 wins elections
ifconfig_re0_alias0="inet vhid 1 advskew 100 pass testpass alias 192.168.1.138/32"

Whereas:

vhid 1: Virtual Host ID - must match on all CARP members
advskew: Advertisement skew - higher value means lower priority (f1 uses 100, f0 uses default 0)
pass testpass: Password for CARP authentication (if you follow this, use a different password!)
alias 192.168.1.138/32: The virtual IP address with a /32 netmask

Next, update /etc/hosts on all nodes (f0, f1, f2, r0, r1, r2) to resolve the VIP hostname:

192.168.2.138 f3s-storage-ha f3s-storage-ha.wg0 f3s-storage-ha.wg0.wan.buetow.org
fd42:beef:cafe:2::138 f3s-storage-ha f3s-storage-ha.wg0 f3s-storage-ha.wg0.wan.buetow.org

This allows clients to connect to f3s-storage-ha regardless of which physical server is currently the MASTER.

CARP State Change Notifications

To correctly manage services during failover, we need to detect CARP state changes. FreeBSD's devd system can notify us when CARP transitions between MASTER and BACKUP states.

Add this to /etc/devd.conf on both f0 and f1:

paul@f0:~ % cat <<END | doas tee -a /etc/devd.conf
notify 0 {
        match "system"          "CARP";
        match "subsystem"       "[0-9]+@[0-9a-z.]+";
        match "type"            "(MASTER|BACKUP)";
        action "/usr/local/bin/carpcontrol.sh $subsystem $type";
};
END

paul@f0:~ % doas service devd restart

Next, we create the CARP control script that will restart stunnel when the CARP state changes:

Update: Fixed the script at Sat 3 Jan 23:55:11 EET 2026 - changed $1 to $2 because devd passes $subsystem $type, so the state is in the second argument.

paul@f0:~ % doas tee /usr/local/bin/carpcontrol.sh <<'EOF'
#!/bin/sh
# CARP state change control script

case "$2" in
    MASTER)
        logger "CARP state changed to MASTER, starting services"
        ;;
    BACKUP)
        logger "CARP state changed to BACKUP, stopping services"
        ;;
    *)
        logger "CARP state changed to $2 (unhandled)"
        ;;
esac
EOF

paul@f0:~ % doas chmod +x /usr/local/bin/carpcontrol.sh

# Copy the same script to f1
paul@f0:~ % scp /usr/local/bin/carpcontrol.sh f1:/tmp/
paul@f1:~ % doas mv /tmp/carpcontrol.sh /usr/local/bin/
paul@f1:~ % doas chmod +x /usr/local/bin/carpcontrol.sh

Note that carpcontrol.sh doesn't do anything useful yet. We will provide more details (including starting and stopping services upon failover) later in this blog post.

To enable CARP in /boot/loader.conf, run:

paul@f0:~ % echo 'carp_load="YES"' | doas tee -a /boot/loader.conf
carp_load="YES"
paul@f1:~ % echo 'carp_load="YES"' | doas tee -a /boot/loader.conf
carp_load="YES"

Then reboot both hosts or run doas kldload carp to load the module immediately.

NFS Server Configuration

With ZFS replication in place, we can now set up NFS servers on both f0 and f1 to export the replicated data. Since native NFS over TLS (RFC 9289) has compatibility issues between Linux and FreeBSD (not digging into the details here, but I couldn't get it to work), we'll use stunnel to provide encryption.

Setting up NFS on f0 (Primary)

First, enable the NFS services in rc.conf:

paul@f0:~ % doas sysrc nfs_server_enable=YES
nfs_server_enable: YES -> YES
paul@f0:~ % doas sysrc nfsv4_server_enable=YES
nfsv4_server_enable: YES -> YES
paul@f0:~ % doas sysrc nfsuserd_enable=YES
nfsuserd_enable: YES -> YES
paul@f0:~ % doas sysrc nfsuserd_flags="-domain lan.buetow.org"
nfsuserd_flags: "" -> "-domain lan.buetow.org"
paul@f0:~ % doas sysrc mountd_enable=YES
mountd_enable: NO -> YES
paul@f0:~ % doas sysrc rpcbind_enable=YES
rpcbind_enable: NO -> YES

Update: 08.08.2025: I've added the domain to nfsuserd_flags

And we also create a dedicated directory for Kubernetes volumes:

# First, ensure the dataset is mounted
paul@f0:~ % doas zfs get mounted zdata/enc/nfsdata
NAME               PROPERTY  VALUE    SOURCE
zdata/enc/nfsdata  mounted   yes      -

# Create the k3svolumes directory
paul@f0:~ % doas mkdir -p /data/nfs/k3svolumes
paul@f0:~ % doas chmod 755 /data/nfs/k3svolumes

We also create the /etc/exports file. Since we're using stunnel for encryption, ALL clients must connect through stunnel, which appears as localhost (127.0.0.1) to the NFS server:

paul@f0:~ % doas tee /etc/exports <<'EOF'
V4: /data/nfs -sec=sys
/data/nfs -alldirs -maproot=root -network 127.0.0.1 -mask 255.255.255.255
EOF

The exports configuration:

V4: /data/nfs -sec=sys: Sets the NFSv4 root directory to /data/nfs
-maproot=root: Maps root user from client to root on server
-network 127.0.0.1: Only accepts connections from localhost (stunnel)

To start the NFS services, we run:

paul@f0:~ % doas service rpcbind start
Starting rpcbind.
paul@f0:~ % doas service mountd start
Starting mountd.
paul@f0:~ % doas service nfsd start
Starting nfsd.
paul@f0:~ % doas service nfsuserd start
Starting nfsuserd.

Configuring Stunnel for NFS Encryption with CARP Failover

Why stunnel with client certificates? It works with any NFS version on any OS, NFS itself doesn't need to know about it, and only clients with a certificate signed by my CA get in.

Stunnel and CARP fit together like this:

                    CARP VIP (192.168.1.138)
                           |
    f0 (MASTER) ←---------→|←---------→ f1 (BACKUP)
    stunnel:2323           |           stunnel:stopped
    nfsd:2049              |           nfsd:stopped
                           |
                    Clients connect here

The trick: stunnel binds to the CARP VIP. When CARP fails over, the VIP is moved to the new master, and stunnel starts there automatically. Clients maintain their connection to the same IP throughout.

Creating a Certificate Authority for Client Authentication

First, create a CA to sign both server and client certificates:

# On f0 - Create CA
paul@f0:~ % doas mkdir -p /usr/local/etc/stunnel/ca
paul@f0:~ % cd /usr/local/etc/stunnel/ca
paul@f0:~ % doas openssl genrsa -out ca-key.pem 4096
paul@f0:~ % doas openssl req -new -x509 -days 3650 -key ca-key.pem -out ca-cert.pem \
  -subj '/C=US/ST=State/L=City/O=F3S Storage/CN=F3S Stunnel CA'

# Create server certificate
paul@f0:~ % cd /usr/local/etc/stunnel
paul@f0:~ % doas openssl genrsa -out server-key.pem 4096
paul@f0:~ % doas openssl req -new -key server-key.pem -out server.csr \
  -subj '/C=US/ST=State/L=City/O=F3S Storage/CN=f3s-storage-ha.lan'
paul@f0:~ % doas openssl x509 -req -days 3650 -in server.csr -CA ca/ca-cert.pem \
  -CAkey ca/ca-key.pem -CAcreateserial -out server-cert.pem

# Create client certificates for authorised clients
paul@f0:~ % cd /usr/local/etc/stunnel/ca
paul@f0:~ % doas sh -c 'for client in r0 r1 r2 earth; do
  openssl genrsa -out ${client}-key.pem 4096
  openssl req -new -key ${client}-key.pem -out ${client}.csr \
    -subj "/C=US/ST=State/L=City/O=F3S Storage/CN=${client}.lan.buetow.org"
  openssl x509 -req -days 3650 -in ${client}.csr -CA ca-cert.pem \
    -CAkey ca-key.pem -CAcreateserial -out ${client}-cert.pem
  # Combine cert and key into a single file for stunnel client
  cat ${client}-cert.pem ${client}-key.pem > ${client}-stunnel.pem
done'

Install and Configure Stunnel on f0

# Install stunnel
paul@f0:~ % doas pkg install -y stunnel

# Configure stunnel server with client certificate authentication
paul@f0:~ % doas tee /usr/local/etc/stunnel/stunnel.conf <<'EOF'
cert = /usr/local/etc/stunnel/server-cert.pem
key = /usr/local/etc/stunnel/server-key.pem

setuid = stunnel
setgid = stunnel

[nfs-tls]
accept = 192.168.1.138:2323
connect = 127.0.0.1:2049
CAfile = /usr/local/etc/stunnel/ca/ca-cert.pem
verify = 2
requireCert = yes
EOF

# Enable and start stunnel
paul@f0:~ % doas sysrc stunnel_enable=YES
stunnel_enable:  -> YES
paul@f0:~ % doas service stunnel start
Starting stunnel.

# Restart stunnel to apply the CARP VIP binding
paul@f0:~ % doas service stunnel restart
Stopping stunnel.
Starting stunnel.

The configuration includes:

verify = 2: Verify client certificate and fail if not provided
requireCert = yes: Client must present a valid certificate
CAfile: Path to the CA certificate that signed the client certificates

Setting up NFS on f1 (Standby)

Repeat the same configuration on f1:

paul@f1:~ % doas sysrc nfs_server_enable=YES
nfs_server_enable: NO -> YES
paul@f1:~ % doas sysrc nfsv4_server_enable=YES
nfsv4_server_enable: NO -> YES
paul@f1:~ % doas sysrc nfsuserd_enable=YES
nfsuserd_enable: NO -> YES
paul@f1:~ % doas sysrc mountd_enable=YES
mountd_enable: NO -> YES
paul@f1:~ % doas sysrc rpcbind_enable=YES
rpcbind_enable: NO -> YES

paul@f1:~ % doas tee /etc/exports <<'EOF'
V4: /data/nfs -sec=sys
/data/nfs -alldirs -maproot=root -network 127.0.0.1 -mask 255.255.255.255
EOF

paul@f1:~ % doas service rpcbind start
Starting rpcbind.
paul@f1:~ % doas service mountd start
Starting mountd.
paul@f1:~ % doas service nfsd start
Starting nfsd.
paul@f1:~ % doas service nfsuserd start
Starting nfsuserd.

And to configure stunnel on f1, we run:

# Install stunnel
paul@f1:~ % doas pkg install -y stunnel

# Copy certificates from f0
paul@f0:~ % doas tar -cf /tmp/stunnel-certs.tar \
  -C /usr/local/etc/stunnel server-cert.pem server-key.pem ca
paul@f0:~ % scp /tmp/stunnel-certs.tar f1:/tmp/

paul@f1:~ % cd /usr/local/etc/stunnel && doas tar -xf /tmp/stunnel-certs.tar

# Configure stunnel server on f1 with client certificate authentication
paul@f1:~ % doas tee /usr/local/etc/stunnel/stunnel.conf <<'EOF'
cert = /usr/local/etc/stunnel/server-cert.pem
key = /usr/local/etc/stunnel/server-key.pem

setuid = stunnel
setgid = stunnel

[nfs-tls]
accept = 192.168.1.138:2323
connect = 127.0.0.1:2049
CAfile = /usr/local/etc/stunnel/ca/ca-cert.pem
verify = 2
requireCert = yes
EOF

# Enable and start stunnel
paul@f1:~ % doas sysrc stunnel_enable=YES
stunnel_enable:  -> YES
paul@f1:~ % doas service stunnel start
Starting stunnel.

# Restart stunnel to apply the CARP VIP binding
paul@f1:~ % doas service stunnel restart
Stopping stunnel.
Starting stunnel.

CARP Control Script for Clean Failover

With stunnel configured to bind to the CARP VIP (192.168.1.138), only the server that is currently the CARP MASTER will accept stunnel connections. This provides automatic failover for encrypted NFS:

When f0 is CARP MASTER: stunnel on f0 accepts connections on 192.168.1.138:2323
When f1 becomes CARP MASTER: stunnel on f1 starts accepting connections on 192.168.1.138:2323
The backup server's stunnel process will fail to bind to the VIP and won't accept connections

So clients always land on the active NFS server. For a clean failover without stale file handles, carpcontrol.sh now:

Stops NFS services on BACKUP nodes (preventing split-brain scenarios)
Starts NFS services only on the MASTER node
Manages stunnel binding to the CARP VIP

Update: Fixed the script at Sat 3 Jan 23:55:11 EET 2026 - changed $1 to $2 because devd passes $subsystem $type, so the state is in the second argument.

# Create CARP control script on both f0 and f1
paul@f0:~ % doas tee /usr/local/bin/carpcontrol.sh <<'EOF'
#!/bin/sh
# CARP state change control script

HOSTNAME=`hostname`

if [ ! -f /data/nfs/nfs.DO_NOT_REMOVE ]; then
    logger '/data/nfs not mounted, mounting it now!'
    if [ "$HOSTNAME" = 'f0.lan.buetow.org' ]; then
        zfs load-key -L file:///keys/f0.lan.buetow.org:zdata.key zdata/enc/nfsdata
        zfs set mountpoint=/data/nfs zdata/enc/nfsdata
    else
        zfs load-key -L file:///keys/f0.lan.buetow.org:zdata.key zdata/sink/f0/zdata/enc/nfsdata
        zfs set mountpoint=/data/nfs zdata/sink/f0/zdata/enc/nfsdata
        zfs mount zdata/sink/f0/zdata/enc/nfsdata
        zfs set readonly=on zdata/sink/f0/zdata/enc/nfsdata
    fi
    service nfsd stop 2>&1
    service mountd stop 2>&1
fi


case "$2" in
    MASTER)
        logger "CARP state changed to MASTER, starting services"
        service rpcbind start >/dev/null 2>&1
        service mountd start >/dev/null 2>&1
        service nfsd start >/dev/null 2>&1
        service nfsuserd start >/dev/null 2>&1
        service stunnel restart >/dev/null 2>&1
        logger "CARP MASTER: NFS and stunnel services started"
        ;;
    BACKUP)
        logger "CARP state changed to BACKUP, stopping services"
        service stunnel stop >/dev/null 2>&1
        service nfsd stop >/dev/null 2>&1
        service mountd stop >/dev/null 2>&1
        service nfsuserd stop >/dev/null 2>&1
        logger "CARP BACKUP: NFS and stunnel services stopped"
        ;;
    *)
        logger "CARP state changed to $2 (unhandled)"
        ;;
esac
EOF

paul@f0:~ % doas chmod +x /usr/local/bin/carpcontrol.sh

CARP Management Script

To simplify CARP state management and failover testing, create this helper script on both f0 and f1:

# Create the CARP management script
paul@f0:~ % doas tee /usr/local/bin/carp <<'EOF'
#!/bin/sh
# CARP state management script
# Usage: carp [master|backup|auto-failback enable|auto-failback disable]
# Without arguments: shows current state

# Find the interface with CARP configured
CARP_IF=$(ifconfig -l | xargs -n1 | while read if; do
    ifconfig "$if" 2>/dev/null | grep -q "carp:" && echo "$if" && break
done)

if [ -z "$CARP_IF" ]; then
    echo "Error: No CARP interface found"
    exit 1
fi

# Get CARP VHID
VHID=$(ifconfig "$CARP_IF" | grep "carp:" | sed -n 's/.*vhid \([0-9]*\).*/\1/p')

if [ -z "$VHID" ]; then
    echo "Error: Could not determine CARP VHID"
    exit 1
fi

# Function to get the current state
get_state() {
    ifconfig "$CARP_IF" | grep "carp:" | awk '{print $2}'
}

# Check for auto-failback block file
BLOCK_FILE="/data/nfs/nfs.NO_AUTO_FAILBACK"
check_auto_failback() {
    if [ -f "$BLOCK_FILE" ]; then
        echo "WARNING: Auto-failback is DISABLED (file exists: $BLOCK_FILE)"
    fi
}

# Main logic
case "$1" in
    "")
        # No argument - show current state
        STATE=$(get_state)
        echo "CARP state on $CARP_IF (vhid $VHID): $STATE"
        check_auto_failback
        ;;
    master)
        # Force to MASTER state
        echo "Setting CARP to MASTER state..."
        ifconfig "$CARP_IF" vhid "$VHID" state master
        sleep 1
        STATE=$(get_state)
        echo "CARP state on $CARP_IF (vhid $VHID): $STATE"
        check_auto_failback
        ;;
    backup)
        # Force to BACKUP state
        echo "Setting CARP to BACKUP state..."
        ifconfig "$CARP_IF" vhid "$VHID" state backup
        sleep 1
        STATE=$(get_state)
        echo "CARP state on $CARP_IF (vhid $VHID): $STATE"
        check_auto_failback
        ;;
    auto-failback)
        case "$2" in
            enable)
                if [ -f "$BLOCK_FILE" ]; then
                    rm "$BLOCK_FILE"
                    echo "Auto-failback ENABLED (removed $BLOCK_FILE)"
                else
                    echo "Auto-failback was already enabled"
                fi
                ;;
            disable)
                if [ ! -f "$BLOCK_FILE" ]; then
                    touch "$BLOCK_FILE"
                    echo "Auto-failback DISABLED (created $BLOCK_FILE)"
                else
                    echo "Auto-failback was already disabled"
                fi
                ;;
            *)
                echo "Usage: $0 auto-failback [enable|disable]"
                echo "  enable:  Remove block file to allow automatic failback"
                echo "  disable: Create block file to prevent automatic failback"
                exit 1
                ;;
        esac
        ;;
    *)
        echo "Usage: $0 [master|backup|auto-failback enable|auto-failback disable]"
        echo "  Without arguments: show current CARP state"
        echo "  master: force this node to become CARP MASTER"
        echo "  backup: force this node to become CARP BACKUP"
        echo "  auto-failback enable:  allow automatic failback to f0"
        echo "  auto-failback disable: prevent automatic failback to f0"
        exit 1
        ;;
esac
EOF

paul@f0:~ % doas chmod +x /usr/local/bin/carp

# Copy to f1 as well
paul@f0:~ % scp /usr/local/bin/carp f1:/tmp/
paul@f1:~ % doas cp /tmp/carp /usr/local/bin/carp && doas chmod +x /usr/local/bin/carp

Now you can easily manage CARP states and auto-failback:

# Check current CARP state
paul@f0:~ % doas carp
CARP state on re0 (vhid 1): MASTER

# If auto-failback is disabled, you'll see a warning
paul@f0:~ % doas carp
CARP state on re0 (vhid 1): MASTER
WARNING: Auto-failback is DISABLED (file exists: /data/nfs/nfs.NO_AUTO_FAILBACK)

# Force f0 to become BACKUP (triggers failover to f1)
paul@f0:~ % doas carp backup
Setting CARP to BACKUP state...
CARP state on re0 (vhid 1): BACKUP

# Disable auto-failback (useful for maintenance)
paul@f0:~ % doas carp auto-failback disable
Auto-failback DISABLED (created /data/nfs/nfs.NO_AUTO_FAILBACK)

# Enable auto-failback
paul@f0:~ % doas carp auto-failback enable
Auto-failback ENABLED (removed /data/nfs/nfs.NO_AUTO_FAILBACK)

Automatic Failback After Reboot

When f0 reboots (planned or unplanned), f1 takes over as CARP MASTER. To ensure f0 automatically reclaims its primary role once it's fully operational, we'll implement an automatic failback mechanism. With:

Update: Fixed the script at Sun 4 Jan 00:04:28 EET 2026 - removed the NFS service check because when f0 is BACKUP, NFS services are intentionally stopped by carpcontrol.sh, which would prevent auto-failback from ever triggering.

paul@f0:~ % doas tee /usr/local/bin/carp-auto-failback.sh <<'EOF'
#!/bin/sh
# CARP automatic failback script for f0
# Ensures f0 reclaims MASTER role after reboot when storage is ready

LOGFILE="/var/log/carp-auto-failback.log"
MARKER_FILE="/data/nfs/nfs.DO_NOT_REMOVE"
BLOCK_FILE="/data/nfs/nfs.NO_AUTO_FAILBACK"

log_message() {
    echo "$(date '+%Y-%m-%d %H:%M:%S') - $1" >> "$LOGFILE"
}

# Check if we're already MASTER
CURRENT_STATE=$(/usr/local/bin/carp | awk '{print $NF}')
if [ "$CURRENT_STATE" = "MASTER" ]; then
    exit 0
fi

# Check if /data/nfs is mounted
if ! mount | grep -q "on /data/nfs "; then
    log_message "SKIP: /data/nfs not mounted"
    exit 0
fi

# Check if the marker file exists
# (identifies that the ZFS data set is properly mounted)
if [ ! -f "$MARKER_FILE" ]; then
    log_message "SKIP: Marker file $MARKER_FILE not found"
    exit 0
fi

# Check if failback is blocked (for maintenance)
if [ -f "$BLOCK_FILE" ]; then
    log_message "SKIP: Failback blocked by $BLOCK_FILE"
    exit 0
fi

# All conditions met - promote to MASTER
log_message "CONDITIONS MET: Promoting to MASTER (was $CURRENT_STATE)"
/usr/local/bin/carp master

# Log result
sleep 2
NEW_STATE=$(/usr/local/bin/carp | awk '{print $NF}')
log_message "Failback complete: State is now $NEW_STATE"

# If successful, log to the system log too
if [ "$NEW_STATE" = "MASTER" ]; then
    logger "CARP: f0 automatically reclaimed MASTER role"
fi
EOF

paul@f0:~ % doas chmod +x /usr/local/bin/carp-auto-failback.sh

The marker file identifies that the ZFS data set is mounted correctly. We create it with:

paul@f0:~ % doas touch /data/nfs/nfs.DO_NOT_REMOVE

We add a cron job to check every minute:

paul@f0:~ % echo "* * * * * /usr/local/bin/carp-auto-failback.sh" | doas crontab -

The carp script also toggles auto-failback. To temporarily turn off automatic failback (e.g., for f0 maintenance), we run:

paul@f0:~ % doas carp auto-failback disable
Auto-failback DISABLED (created /data/nfs/nfs.NO_AUTO_FAILBACK)

And to re-enable it:

paul@f0:~ % doas carp auto-failback enable
Auto-failback ENABLED (removed /data/nfs/nfs.NO_AUTO_FAILBACK)

To check whether auto-failback is enabled, we run:

paul@f0:~ % doas carp
CARP state on re0 (vhid 1): MASTER
# If disabled, you'll see: WARNING: Auto-failback is DISABLED

The failback attempts are logged to /var/log/carp-auto-failback.log!

So, in summary:

After f0 reboots: f1 is MASTER, f0 boots as BACKUP
Cron runs every minute: Checks if conditions are met (Is f0 currently BACKUP? (don't run if already MASTER)), (Is /data/nfs mounted? (ZFS datasets are ready)), (Does marker file exist? (confirms this is primary storage)), (Is failback blocked? (admin can prevent failback)), (Are NFS services running? (system is fully ready))
Failback occurs: Typically 2-3 minutes after boot completes
Logging: All attempts logged for troubleshooting

Client Configuration for NFS via Stunnel

To mount NFS shares with stunnel encryption, clients must install and configure stunnel using their client certificates.

Configuring Rocky Linux Clients (r0, r1, r2)

On the Rocky Linux VMs, we run:

# Install stunnel on client (example for `r0`)
[root@r0 ~]# dnf install -y stunnel nfs-utils

# Copy client certificate and CA certificate from f0
[root@r0 ~]# scp f0:/usr/local/etc/stunnel/ca/r0-stunnel.pem /etc/stunnel/
[root@r0 ~]# scp f0:/usr/local/etc/stunnel/ca/ca-cert.pem /etc/stunnel/

# Configure stunnel client with certificate authentication
[root@r0 ~]# tee /etc/stunnel/stunnel.conf <<'EOF'
cert = /etc/stunnel/r0-stunnel.pem
CAfile = /etc/stunnel/ca-cert.pem
client = yes
verify = 2

[nfs-ha]
accept = 127.0.0.1:2323
connect = 192.168.1.138:2323
EOF

# Enable and start stunnel
[root@r0 ~]# systemctl enable --now stunnel

# Repeat for r1 and r2 with their respective certificates

Note: Each client must use its certificate file (r0-stunnel.pem, r1-stunnel.pem, r2-stunnel.pem, or earth-stunnel.pem - the latter is for my Laptop, which can also mount the NFS shares).

NFSv4 user mapping config on Rocky

Update: This section was added 08.08.2025!

For this, we need to set the Domain in /etc/idmapd.conf on all 3 Rocky hosts to lan.buetow.org (remember, earlier in this blog post we set the nfsuserd domain on the NFS server side to lan.buetow.org as well!)

[General]

Domain = lan.buetow.org
.
.
.

We also need to increase the inotify limit, otherwise nfs-idmapd may fail to start with "Too many open files":

[root@r0 ~]# echo 'fs.inotify.max_user_instances = 512' > /etc/sysctl.d/99-inotify.conf
[root@r0 ~]# sysctl -w fs.inotify.max_user_instances=512

And afterwards, we need to run the following on all 3 Rocky hosts:

[root@r0 ~]# systemctl start nfs-idmapd
[root@r0 ~]# systemctl enable --now nfs-client.target

and then, safest, reboot those.

Testing NFS Mount with Stunnel

To mount NFS through the stunnel encrypted tunnel, we run:

# Create a mount point
[root@r0 ~]# mkdir -p /data/nfs/k3svolumes

# Mount through stunnel (using localhost and NFSv4)
[root@r0 ~]# mount -t nfs4 -o port=2323 127.0.0.1:/k3svolumes /data/nfs/k3svolumes

# Verify mount
[root@r0 ~]# mount | grep k3svolumes
127.0.0.1:/k3svolumes on /data/nfs/k3svolumes
  type nfs4 (rw,relatime,vers=4.2,rsize=131072,wsize=131072,
  namlen=255,hard,proto=tcp,port=2323,timeo=600,retrans=2,sec=sys,
  clientaddr=127.0.0.1,local_lock=none,addr=127.0.0.1)

# For persistent mount, add to /etc/fstab:
127.0.0.1:/k3svolumes /data/nfs/k3svolumes nfs4 port=2323,_netdev,soft,timeo=10,retrans=2,intr 0 0

Note: The mount uses localhost (127.0.0.1) because stunnel is listening locally and forwarding the encrypted traffic to the remote server.

Testing CARP Failover with mounted clients and stale file handles:

To test the failover process:

# On f0 (current MASTER) - trigger failover
paul@f0:~ % doas ifconfig re0 vhid 1 state backup

# On f1 - verify it becomes MASTER
paul@f1:~ % ifconfig re0 | grep carp
    inet 192.168.1.138 netmask 0xffffffff broadcast 192.168.1.138 vhid 1

# Check stunnel is now listening on f1
paul@f1:~ % doas sockstat -l | grep 2323
stunnel  stunnel    4567  3  tcp4   192.168.1.138:2323    *:*

# On client - verify NFS mount still works
[root@r0 ~]# ls /data/nfs/k3svolumes/
[root@r0 ~]# echo "Test after failover" > /data/nfs/k3svolumes/failover-test.txt

After a CARP failover, NFS clients may experience "Stale file handle" errors because they cached file handles from the previous server. To resolve this manually, we can run:

# Force unmount and remount
[root@r0 ~]# umount -f /data/nfs/k3svolumes
[root@r0 ~]# mount /data/nfs/k3svolumes

For the automatic recovery, we create a script:

[root@r0 ~]# cat > /usr/local/bin/check-nfs-mount.sh << 'EOF'
#!/bin/bash
# Fast NFS mount health monitor - runs every 10 seconds via systemd timer

MOUNT_POINT="/data/nfs/k3svolumes"
LOCK_FILE="/var/run/nfs-mount-check.lock"

# Use a lock file to prevent concurrent runs
if [ -f "$LOCK_FILE" ]; then
    exit 0
fi
touch "$LOCK_FILE"
trap "rm -f $LOCK_FILE" EXIT

MOUNT_FIXED=0

fix_mount () {
    echo "Attempting to remount NFS mount $MOUNT_POINT"
    if mount -o remount -f "$MOUNT_POINT" 2>/dev/null; then
        echo "Remount command issued for $MOUNT_POINT"
    else
        echo "Failed to remount NFS mount $MOUNT_POINT"
    fi

    echo "Checking if $MOUNT_POINT is a mountpoint"
    if mountpoint "$MOUNT_POINT" >/dev/null 2>&1; then
        echo "$MOUNT_POINT is a valid mountpoint"
    else
        echo "$MOUNT_POINT is not a valid mountpoint, attempting mount"
        if mount "$MOUNT_POINT"; then
            echo "Successfully mounted $MOUNT_POINT"
            MOUNT_FIXED=1
            return
        else
            echo "Failed to mount $MOUNT_POINT"
        fi
    fi

    echo "Attempting to unmount $MOUNT_POINT"
    if umount -f "$MOUNT_POINT" 2>/dev/null; then
        echo "Successfully unmounted $MOUNT_POINT"
    else
        echo "Failed to unmount $MOUNT_POINT (it might not be mounted)"
    fi

    echo "Attempting to mount $MOUNT_POINT"
    if mount "$MOUNT_POINT"; then
        echo "NFS mount $MOUNT_POINT mounted successfully"
        MOUNT_FIXED=1
        return
    else
        echo "Failed to mount NFS mount $MOUNT_POINT"
    fi

    echo "Failed to fix NFS mount $MOUNT_POINT"
    exit 1
}

if ! mountpoint "$MOUNT_POINT" >/dev/null 2>&1; then
    echo "NFS mount $MOUNT_POINT not found"
    fix_mount
fi

if ! timeout 2s stat "$MOUNT_POINT" >/dev/null 2>&1; then
    echo "NFS mount $MOUNT_POINT appears to be unresponsive"
    fix_mount
fi

# After a successful remount, delete pods stuck on this node
if [ "$MOUNT_FIXED" -eq 1 ]; then
    echo "Mount was fixed, checking for stuck pods on this node..."
    NODE=$(hostname)
    export KUBECONFIG=/etc/rancher/k3s/k3s.yaml
    kubectl get pods --all-namespaces \
      --field-selector="spec.nodeName=$NODE" \
      -o json 2>/dev/null | jq -r '
        .items[] |
        select(
          .status.phase == "Unknown" or
          .status.phase == "Pending" or
          (.status.conditions // [] |
            any(.type == "Ready" and .status == "False")) or
          (.status.containerStatuses // [] |
            any(.state.waiting.reason == "ContainerCreating"))
        ) | "\(.metadata.namespace) \(.metadata.name)"' | \
      while read ns pod; do
        echo "Deleting stuck pod $ns/$pod"
        kubectl delete pod -n "$ns" "$pod" \
          --grace-period=0 --force 2>&1
      done
fi
EOF

[root@r0 ~]# chmod +x /usr/local/bin/check-nfs-mount.sh

And we create the systemd service as follows:

[root@r0 ~]# cat > /etc/systemd/system/nfs-mount-monitor.service << 'EOF'
[Unit]
Description=NFS Mount Health Monitor
After=network-online.target

[Service]
Type=oneshot
ExecStart=/usr/local/bin/check-nfs-mount.sh
StandardOutput=journal
StandardError=journal
EOF

And we also create the systemd timer (runs every 10 seconds):

[root@r0 ~]# cat > /etc/systemd/system/nfs-mount-monitor.timer << 'EOF'
[Unit]
Description=Run NFS Mount Health Monitor every 10 seconds
Requires=nfs-mount-monitor.service

[Timer]
OnBootSec=30s
OnUnitActiveSec=10s
AccuracySec=1s

[Install]
WantedBy=timers.target
EOF

To enable and start the timer, we run:

[root@r0 ~]# systemctl daemon-reload
[root@r0 ~]# systemctl enable nfs-mount-monitor.timer
[root@r0 ~]# systemctl start nfs-mount-monitor.timer

# Check status
[root@r0 ~]# systemctl status nfs-mount-monitor.timer
● nfs-mount-monitor.timer - Run NFS Mount Health Monitor every 10 seconds
     Loaded: loaded (/etc/systemd/system/nfs-mount-monitor.timer; enabled)
     Active: active (waiting) since Sat 2025-07-06 10:00:00 EEST
    Trigger: Sat 2025-07-06 10:00:10 EEST; 8s left

# Monitor logs
[root@r0 ~]# journalctl -u nfs-mount-monitor -f

Note: Stale file handles are inherent to NFS failover because file handles are server-specific. The best approach depends on your application's tolerance for brief disruptions. Of course, all the changes made to r0 above must also be applied to r1 and r2.

Updated Wed 19 Mar 2026: Added automatic pod restart after NFS remount

The script now also tracks whether a mount was fixed via the MOUNT_FIXED variable. After a successful remount, it queries kubectl for pods on the local node that are stuck in Unknown, Pending, or ContainerCreating state and force-deletes them. Kubernetes then automatically reschedules these pods, which will now succeed because the NFS mount is healthy again. Without this, pods that hit a stale mount would remain broken until manually deleted, even after the underlying NFS issue was resolved.

Update 2026-05-10: Write-probe, stronger fix_mount, reboot escalation, Prometheus alerts

On 2026-05-10, r2 spent about 50 minutes with a broken NFS mount that neither the mountpoint check nor the stat probe caught. Reads were fine — the kernel was returning cached metadata — but every write was hanging. The root cause was a stale stunnel session after a CARP failover that left the TLS transport wedged.

The script grew three new things in response. First, a write probe: every run tries to write and delete a tiny healthcheck file (timeout 5s sh -c "echo \$\$ > .healthcheck.$(hostname) && rm -f ..."). If that times out, the mount is broken regardless of what stat says. Second, fix_mount got stronger: it now kills D-state processes that are pinning the mount (scanning /proc/*/wchan for nfs_* waiters), does a lazy umount -l after the forced one in case umount -f can't detach, and restarts stunnel before the fresh mount so the TLS session is actually clean. The whole function runs under a 60-second hard deadline so the 10-second timer can't pile up indefinitely. Third, after five consecutive repair failures (~50 s), the node cordons itself via kubectl cordon and calls systemctl reboot — a Rocky Linux VM reboots in about 30 seconds, which is faster than trying to dig out a wedged kernel NFS state by hand.

Prometheus now tracks all of this via a textfile metric (nfs_mount_monitor_consecutive_failures) that node_exporter picks up on every scrape. A warning fires at three consecutive failures, critical at five.

Navidrome's data volume also moved off NFS to a local-path PV on r1. Its SQLite database and image cache never belonged on NFS anyway — NFS file-lock semantics are a poor fit for SQLite, and the TLS round-trip overhead was adding ~19 seconds to cache initialisation. See the Local-Path Storage section below.

The script lives in the conf repo at f3s/r-nodes/nfs-mount-monitor/check-nfs-mount.sh and is deployed via rex -f f3s/r-nodes/Rexfile nfs_mount_monitor.

Complete Failover Test

Here's a full failover test with everything in place:

# 1. Check the initial state
paul@f0:~ % ifconfig re0 | grep carp
    carp: MASTER vhid 1 advbase 1 advskew 0
paul@f1:~ % ifconfig re0 | grep carp
    carp: BACKUP vhid 1 advbase 1 advskew 100

# 2. Create a test file from a client
[root@r0 ~]# echo "test before failover" > /data/nfs/k3svolumes/test-before.txt

# 3. Trigger failover (f0 → f1)
paul@f0:~ % doas ifconfig re0 vhid 1 state backup

# 4. Monitor client behaviour
[root@r0 ~]# ls /data/nfs/k3svolumes/
ls: cannot access '/data/nfs/k3svolumes/': Stale file handle

# 5. Check automatic recovery (within 10 seconds)
[root@r0 ~]# journalctl -u nfs-mount-monitor -f
Jul 06 10:15:32 r0 nfs-monitor[1234]: NFS mount unhealthy detected at \
  Sun Jul 6 10:15:32 EEST 2025
Jul 06 10:15:32 r0 nfs-monitor[1234]: Attempting to fix stale NFS mount at \
  Sun Jul 6 10:15:32 EEST 2025
Jul 06 10:15:33 r0 nfs-monitor[1234]: NFS mount fixed at \
  Sun Jul 6 10:15:33 EEST 2025

Failover Timeline:

0 seconds: CARP failover triggered
0-2 seconds: Clients get "Stale file handle" errors (not hanging)
3-10 seconds: Soft mounts ensure quick failure of operations
Within 10 seconds: Automatic recovery via systemd timer

A few caveats:

Recent writes (within 1 minute) may not be visible after failover due to replication lag
Applications should handle brief NFS errors gracefully
For zero-downtime requirements, consider synchronous replication or distributed storage (see "Future storage explorations" section later in this blog post)

Update: Upgrade to 4TB drives

Update: 27.01.2026 I have since replaced the 1TB drives with 4TB drives for more storage capacity. The upgrade procedure was different for each node!

Upgrading f1 (simpler approach)

Since f1 is the replication sink, the upgrade was straightforward:

1. Physically replaced the 1TB drive with the 4TB drive
2. Re-setup the drive as described earlier in this blog post
3. Re-replicated all data from f0 to f1 via zrepl
4. Reloaded the encryption keys as described in this blog post
5. Set the mount point again for the encrypted dataset, explicitly as read-only (since f1 is the replication sink)

Upgrading f0 (using ZFS resilvering)

For f0, which is the primary storage node, I used ZFS resilvering to avoid data loss:

1. Plugged the new 4TB drive into an external USB SSD drive reader
2. Attached the 4TB drive to the zdata pool for resilvering
3. Once resilvering completed, detached the 1TB drive from the zdata pool
4. Shutdown f0 and physically replaced the internal drive
5. Booted with the new drive in place
6. Expanded the pool to use the full 4TB capacity:

paul@f0:~ % doas zpool online -e /dev/ada1

7. Reloaded the encryption keys as described in this blog post
8. Set the mount point again for the encrypted dataset

This was a one-time effort on both nodes - after a reboot, everything was remembered and came up normally. Here are the updated outputs:

paul@f0:~ % doas zpool list
NAME    SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
zdata  3.63T   677G  2.97T        -         -     3%    18%  1.00x    ONLINE  -
zroot   472G  68.4G   404G        -         -    13%    14%  1.00x    ONLINE  -

paul@f0:~ % doas camcontrol devlist
<512GB SSD D910R170>               at scbus0 target 0 lun 0 (pass0,ada0)
<SD Ultra 3D 4TB 530500WD>         at scbus1 target 0 lun 0 (pass1,ada1)
<Generic Flash Disk 8.07>          at scbus2 target 0 lun 0 (da0,pass2)

We're still using different SSD models on f1 (WD Blue SA510 4TB) to avoid simultaneous failures:

paul@f1:~ % doas camcontrol devlist
<512GB SSD D910R170>               at scbus0 target 0 lun 0 (pass0,ada0)
<WD Blue SA510 2.5 4TB 530500WD>   at scbus1 target 0 lun 0 (pass1,ada1)
<Generic Flash Disk 8.07>          at scbus2 target 0 lun 0 (da0,pass2)

Conclusion

That's the storage: encrypted ZFS, replicated every minute with zrepl, NFS over stunnel behind a CARP VIP. What I learned: native NFS/TLS between Linux and FreeBSD didn't work for me, so stunnel it is. And for storage, I prefer a manual failover over a clever automatic one.

Future Storage Explorations

A few other storage options I might look at later:

MinIO for S3-Compatible Object Storage

MinIO gives me an S3 API on top of the ZFS storage, and it can replicate between sites, which would map to f0/f1/f2.

MooseFS for Distributed High Availability
